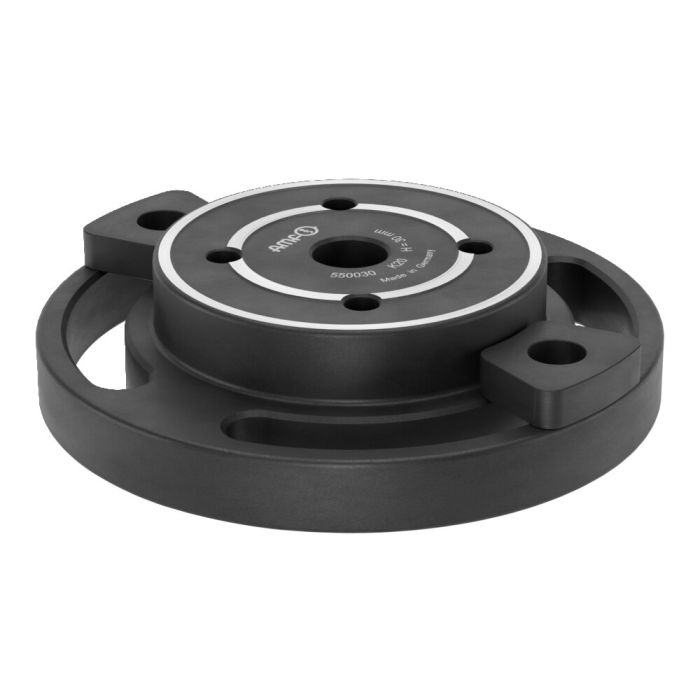

Base element, round, for T-slot plate
Application:
The main element can be freely positioned and fastened on the machine table with T-slots at the circumferential clamping rim. Intermediate elements or assembly elements can be adapted. This clamping system can be used to move workpieces to the required machining height in the machine for 5-sided machining, or for the safe and quick clamping of workpieces with ledges and different clamping heights on the machine table with T-slots.
Note:
Centring sleeves:
- Ø15: order no. 535732
- Ø16: order no. 78006
Spring washer
- order no. B10 = 559140
- order no. B20 = 535757.
T-nut no. 6322A with cylinder screws
ISO 4762-M6x10 can be used for positioning on a T-slot plate.
Advantage:
Simple, quick and flexible clamping of complex workpiece contours on the machine table. Especially suitable for levelling workpieces or clamping fixtures at the necessary machine heights in the machine tool and for the reliable clamping of same.
| Order no. | 559095 |
|---|---|
| Product type | Modular zero-point clamping system |
| Operating mode | Mechanical, Hydraulic, Pneumatic |
| Size clamping module | 10 |
