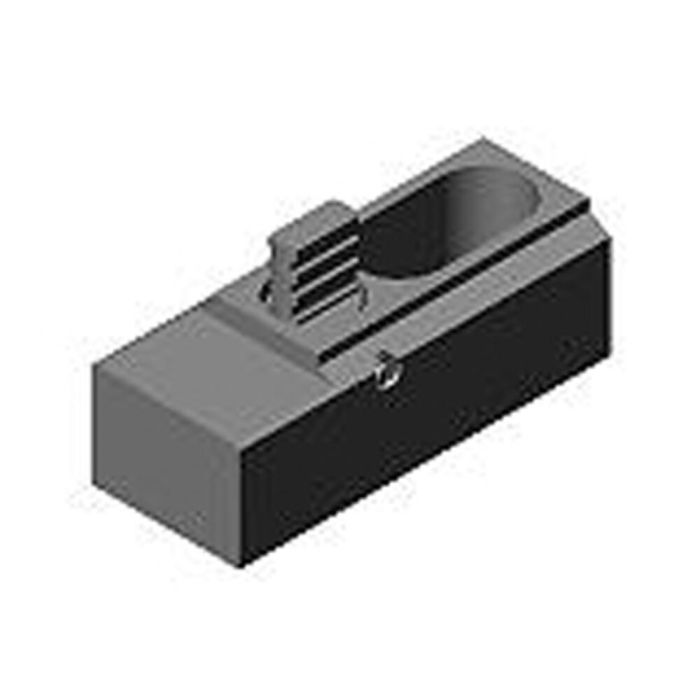

Base element with support surface
| Order no. | Article no. | H
±0.01
| A x B x C | B1 | E | dia. F | G | Weight
[g] | Availability | Your Price |
| 78345 | 7110FA-12-3 | 25 | 30x25x88 | 35 | 23 | 12,5 | M12 | 530 | | |
| 78436 | 7110FA-16-3 | 30 | 40x30x110 | 48 | 27 | 17,0 | M16 | 1180 | | |
| | | | | | | | | | |
| Order no. | I | k | L | N | O | P |
| 78345 | 35 | 20 | 40 | 19 | 10 | 18 |
| 78436 | 41 | 25 | 50 | 25 | 15 | 25 |
| | | | | | |
Design:
Case-hardened steel, support and base surface ground parallel.
More Information | Order no. | 78436 |
|---|
| Type | 16 |
|---|
