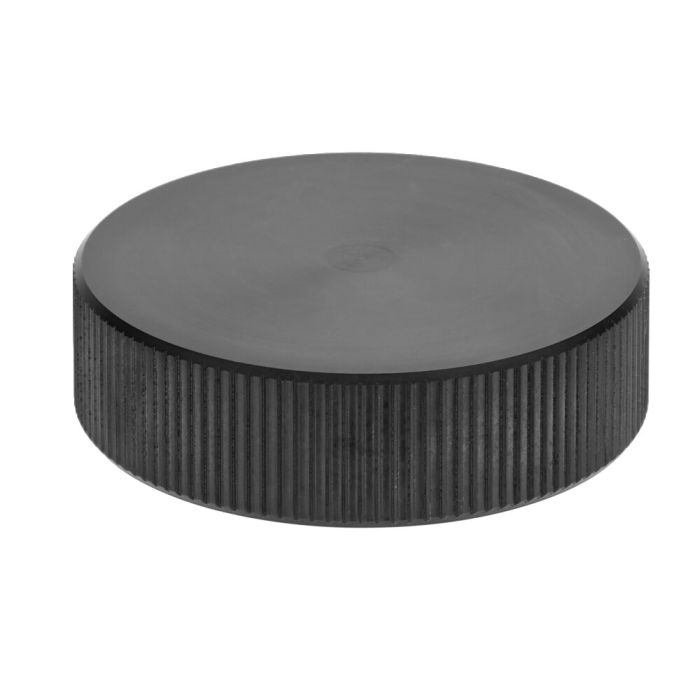

Bearing, smooth, fixed
For the support element 6425A-230, ⌀ 75 mm, height 25 mm
Order no.
569434
Application:
- Interchangeable bearing for the support element 6425A-230
Advantage:
- Smooth, fixed support without angle function enables alignment with the support element and various spacer elements up to a total height of 1626 mm
- For use in horizontal and vertical clamping, since secured by magnet and cylinder pin.
| Order no. | 569434 |
|---|---|
| Product type | Modular screw jack |
| Min. height [mm] | 25 |
| Max. height [mm] | 25 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Height adjustment jack with fine thread and base element 6425FB Nr. 562001 Height 210-330 mm, max. support force 35 kN
