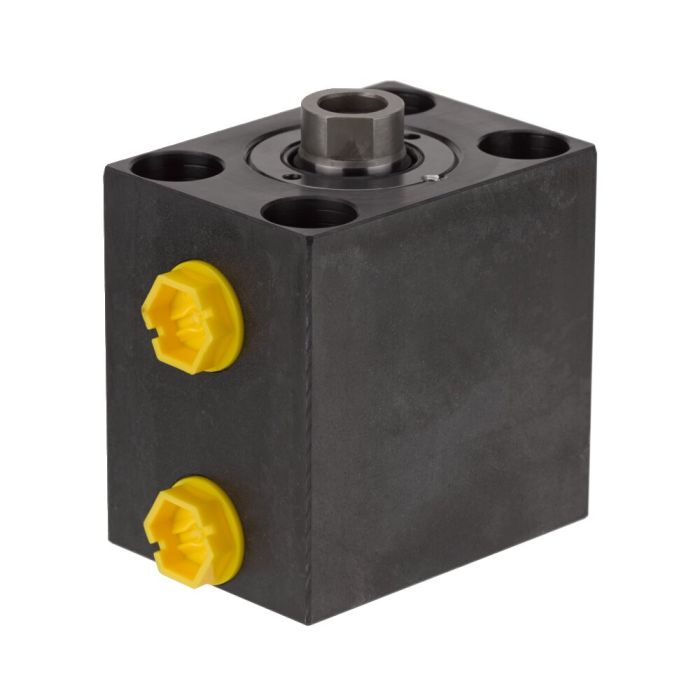

Block Cylinder Max. operating pressure 500 bar, max. clamping force 15,5 kN, max. stroke 100 mm, double acting
Order no. Article no. Push force at 100 bar Push force at 500 bar Pull force at 100 bar Pull force Stroke H Vol. push Vol. pull Piston dia. Weight Availability Your Price 283184 6926D-50-200 12,5 62,5 7,6 38,0 100 125,0 76,0 40 5800
294637 6926D-78-200 19,6 98,0 11,6 58,0 100 196,0 116,0 50 8500
295360 6926D-200-002 50,3 251,5 30,6 153,0 80 402,0 245,0 80 21000
295410 6926D-8-200 2,0 10,0 1,2 6,0 100 20,0 12,0 16 2200
295436 6926D-12-200 3,1 15,5 1,6 8,0 100 31,0 20,0 20 2300
295451 6926D-20-200 5,0 25,0 2,9 14,5 100 50,0 29,0 25 3100
295477 6926D-32-200 8,0 40,0 4,9 24,5 100 80,0 49,0 32 4500
295535 6926D-125-200 31,1 155,0 18,6 93,0 100 311,0 186,0 63 14500
295550 6926D-200-001 50,3 251,5 30,6 153,0 32 160,0 98,0 80 15000
295592 6926D-200-200 50,3 251,5 30,6 153,0 100 503,0 305,0 80 24000
62034 6926D-8-001 2,0 10,0 1,2 6,0 16 3,2 1,9 16 820
62042 6926D-8-002 2,0 10,0 1,2 6,0 50 10,0 6,0 16 1330
62117 6926D-12-001 3,1 15,5 1,6 8,0 16 5,0 2,6 20 880
62133 6926D-12-002 3,1 15,5 1,6 8,0 50 15,5 8,0 20 1380
62174 6926D-20-001 5,0 25,0 2,9 14,5 20 9,8 5,8 25 1220
62182 6926D-20-002 5,0 25,0 2,9 14,5 50 25,0 14,5 25 1800
62257 6926D-32-001 8,0 40,0 4,9 24,5 25 20,0 12,2 32 1990
62323 6926D-32-002 8,0 40,0 4,9 24,5 50 40,0 24,5 32 2630
62398 6926D-50-001 12,5 62,5 7,6 38,0 25 31,4 19,1 40 2760
62406 6926D-50-002 12,5 62,5 7,6 38,0 50 62,5 38,0 40 3590
62554 6926D-78-001 19,6 98,0 11,6 58,0 25 49,0 29,0 50 4380
62562 6926D-78-002 19,6 98,0 11,6 58,0 50 98,0 58,0 50 5520
62596 6926D-125-001 31,1 155,5 18,6 93,0 30 93,5 55,8 63 7900
62604 6926D-125-002 31,1 155,5 18,6 93,0 50 155,5 93,0 63 9280
Order no. A b C dia. E L m N x depth Q R S U dia. W Z 283184 85 154 63 25 10 11 M16x25 63 G1/4 22 40 10,5 24,0 294637 100 165 75 32 10 13 M20x30 76 G1/4 27 45 13,0 27,0 295360 160 165 120 50 14 21 M30x40 120 G1/2 46 80 21,0 34,0 295410 60 144 35 10 6 11 M6x12 40 G1/4 8 22 6,5 16,5 295436 60 148 35 14 7 11 M8x15 40 G1/4 10 22 6,5 17,0 295451 65 144 45 16 7 11 M10x15 50 G1/4 13 30 8,5 18,0 295477 75 150 55 20 10 11 M12x15 55 G1/4 17 35 10,5 22,0 295535 125 172 95 40 14 17 M27x40 95 G1/2 36 65 17,0 26,0 295550 160 117 120 50 14 21 M30x40 120 G1/2 46 80 21,0 34,0 295592 160 185 120 50 14 21 M30x40 120 G1/2 46 80 21,0 34,0 62034 60 56 35 10 6 11 M6x12 40 G1/4 8 22 6,5 16,5 62042 60 91 35 10 6 11 M6x12 40 G1/4 8 22 6,5 16,5 62117 60 61 35 14 7 11 M8x15 40 G1/4 10 22 6,5 17,0 62133 60 95 35 14 7 11 M8x15 40 G1/4 10 22 6,5 17,0 62174 65 64 45 16 7 11 M10x15 50 G1/4 13 30 8,5 18,0 62182 65 94 45 16 7 11 M10x15 50 G1/4 13 30 8,5 18,0 62257 75 75 55 20 10 11 M12x15 55 G1/4 17 35 10,5 22,0 62323 75 100 55 20 10 11 M12x15 55 G1/4 17 35 10,5 22,0 62398 85 79 63 25 10 11 M16x25 63 G1/4 22 40 10,5 24,0 62406 85 104 63 25 10 11 M16x25 63 G1/4 22 40 10,5 24,0 62554 100 90 75 32 10 13 M20x30 76 G1/4 27 45 13,0 27,0 62562 100 115 75 32 10 13 M20x30 76 G1/4 27 45 13,0 27,0 62596 125 102 95 40 14 17 M27x40 95 G1/4 36 65 17,0 26,0 62604 125 122 95 40 14 17 M27x40 95 G1/4 36 65 17,0 26,0
Design:
Features:
Note:
On request:
More Information Order no. 295436 Max. clamping force [kN] 15.5 Max. operating pressure [bar] 500 Type of actuation Double acting Stroke [mm] 100
