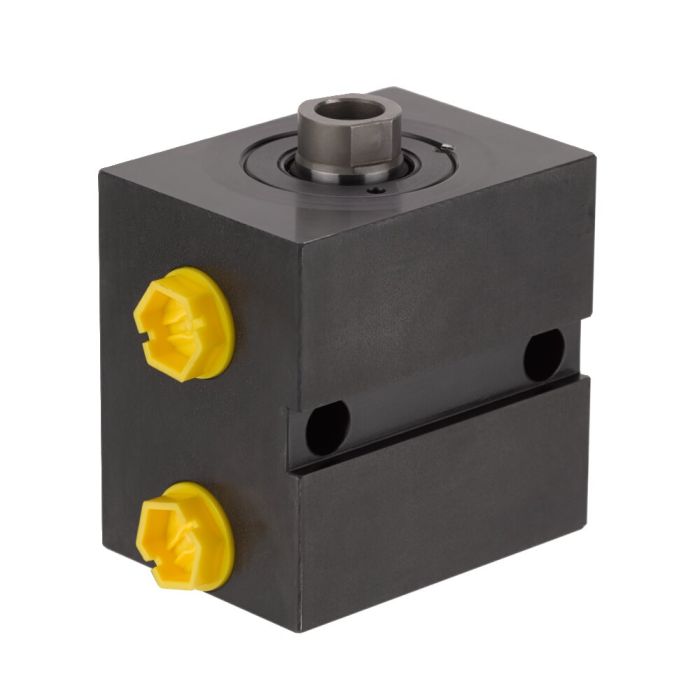

Block Cylinder Max. operating pressure 500 bar, max. clamping force 25 kN, max. stroke 50 mm, double acting
Order no. Article no. Push force at 100 bar Push force at 500 bar Pull force at 100 bar Pull force Stroke H Vol. push Vol. pull Piston dia. Weight Availability Your Price 295246 6926D-50-400 12,5 62,5 7,6 38,0 100 125,0 76,0 40 5800
295618 6926D-8-400 2,0 10,0 1,2 6,0 100 20,0 12,0 16 2200
295626 6926D-12-400 3,1 15,5 1,6 8,0 100 31,0 20,0 20 2300
295634 6926D-20-400 5,0 25,0 2,9 14,5 100 50,0 29,0 25 3100
295642 6926D-32-400 8,0 40,0 4,9 24,5 100 80,0 49,0 32 4500
295667 6926D-78-400 19,6 98,0 11,6 58,0 100 196,0 116,0 50 8500
295675 6926D-125-400 31,1 155,0 18,6 93,0 100 311,0 186,0 63 14500
295683 6926D-200-003 50,3 251,5 30,6 153,0 32 160,0 98,0 80 15000
295691 6926D-200-004 50,3 251,5 30,6 153,0 80 402,0 245,0 80 21000
295709 6926D-200-400 50,3 251,5 30,6 153,0 100 503,0 305,0 80 24000
62067 6926D-8-003 2,0 10,0 1,2 6,0 16 3,2 1,9 16 880
62091 6926D-8-004 2,0 10,0 1,2 6,0 50 10,0 6,0 16 1420
62158 6926D-12-003 3,1 15,5 1,6 8,0 16 5,0 3,2 20 950
62166 6926D-12-004 3,1 15,5 1,6 8,0 50 15,5 10,0 20 1470
62190 6926D-20-003 5,0 25,0 2,9 14,5 20 9,8 5,8 25 1340
62208 6926D-20-004 5,0 25,0 2,9 14,5 50 25,0 14,5 25 1980
62372 6926D-32-003 8,0 40,0 4,9 24,5 25 20,0 12,2 32 2200
62380 6926D-32-004 8,0 40,0 4,9 24,5 50 40,0 24,5 32 2910
62455 6926D-50-003 12,5 62,5 7,6 38,0 25 31,4 19,1 40 2970
62463 6926D-50-004 12,5 62,5 7,6 38,0 50 62,5 38,0 40 3860
62570 6926D-78-003 19,6 98,0 11,6 58,0 25 49,0 29,0 50 4700
62588 6926D-78-004 19,6 98,0 11,6 58,0 50 98,0 58,0 50 5940
62653 6926D-125-003 31,1 155,5 18,6 93,0 30 93,5 55,8 63 8440
62786 6926D-125-004 31,1 155,5 18,6 93,0 50 155,5 93,0 63 10010
Order no. A b C dia. E F L m N x depth Q R S dia. W X Y Z 295246 85 154 63 25 40 10 11 M16x25 63 G1/4 22 10,5 3 12 24,0 295618 60 144 35 10 30 6 11 M6x12 40 G1/4 8 6,5 2 8 16,5 295626 60 148 35 14 30 7 11 M8x15 40 G1/4 10 6,5 2 8 17,0 295634 65 144 45 16 33 7 11 M10x15 50 G1/4 13 8,5 2 10 18,0 295642 75 150 55 20 38 10 11 M12x15 55 G1/4 17 10,5 3 12 22,0 295667 100 165 75 32 44 10 13 M20x30 76 G1/4 27 13,0 5 16 27,0 295675 125 172 95 40 50 14 17 M27x40 95 G1/2 36 17,0 5 20 26,0 295683 160 117 120 50 60 14 21 M30x40 120 G1/2 46 21,0 7 24 34,0 295691 160 165 120 50 60 14 21 M30x40 120 G1/2 46 21,0 7 24 34,0 295709 160 185 120 50 60 14 21 M30x40 120 G1/2 46 21,0 7 24 34,0 62067 60 56 35 10 30 6 11 M6x12 40 G1/4 8 6,5 2 8 16,5 62091 60 91 35 10 30 6 11 M6x12 40 G1/4 8 6,5 2 8 16,5 62158 60 61 35 14 30 7 11 M8x15 40 G1/4 10 6,5 2 8 17,0 62166 60 95 35 14 30 7 11 M8x15 40 G1/4 10 6,5 2 8 17,0 62190 65 64 45 16 33 7 11 M10x15 50 G1/4 13 8,5 2 10 18,0 62208 65 94 45 16 33 7 11 M10x15 50 G1/4 13 8,5 2 10 18,0 62372 75 75 55 20 38 10 11 M12x15 55 G1/4 17 10,5 3 12 22,0 62380 75 100 55 20 38 10 11 M12x15 55 G1/4 17 10,5 3 12 22,0 62455 85 79 63 25 40 10 11 M16x25 63 G1/4 22 10,5 3 12 24,0 62463 85 104 63 25 40 10 11 M16x25 63 G1/4 22 10,5 3 12 24,0 62570 100 90 75 32 44 10 13 M20x30 76 G1/4 27 13,0 5 16 27,0 62588 100 115 75 32 44 10 13 M20x30 76 G1/4 27 13,0 5 16 27,0 62653 125 102 95 40 50 14 17 M27x40 95 G1/4 36 17,0 5 20 26,0 62786 125 122 95 40 50 14 17 M27x40 95 G1/4 36 17,0 5 20 26,0
Design:
Features:
Note:
On request:
More Information Order no. 62208 Max. clamping force [kN] 25 Max. operating pressure [bar] 500 Type of actuation Double acting Stroke [mm] 50
