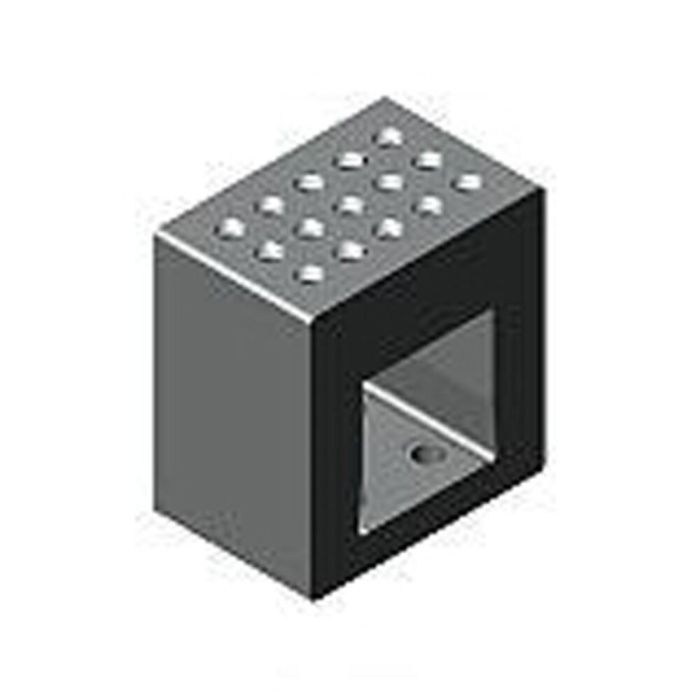

Block without positioning
Support height 125 mm, dia. drilling 16 mm, grid 40 mm, length 119 mm, width 79 mm
| Order no. | Article no. | Support height H ±0.01 | R | Weight
[kg] | Availability | Your Price |
| 76067 | 6363-12-093-1 | 125 | 40 | 6 | | |
| 76083 | 6363-16-093-1 | 160 | 50 | 11,4 | | |
| | | | | | |
| Order no. | b | F | L | L1 | L2 | L3 | m | N | S | T | U | U1 |
| 76067 | 79 | 17 | 119 | 39,5 | 19,5 | 19,5 | M12 | 30 | 13 | 27 | 66 | 67 |
| 76083 | 98 | 22 | 148 | 49,0 | 24,0 | 24,0 | M16 | 34 | 17 | 34 | 80 | 95 |
| | | | | | | | | | | | |
More Information | Order no. | 76067 |
|---|
