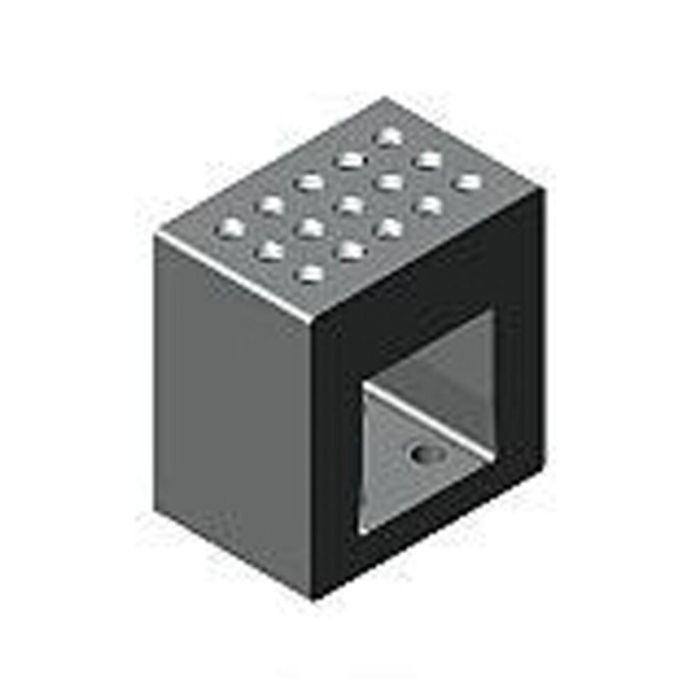

Block without positioning
Support height 160 mm, dia. drilling 22 mm, grid 50 mm, length 148 mm, width 98 mm
| Order no. | Article no. | Support height H ±0.01 | R | Weight
[kg] | Availability | Your Price |
| 76067 | 6363-12-093-1 | 125 | 40 | 6 | | |
| 76083 | 6363-16-093-1 | 160 | 50 | 11,4 | | |
| | | | | | |
| Order no. | b | F | L | L1 | L2 | L3 | m | N | S | T | U | U1 |
| 76067 | 79 | 17 | 119 | 39,5 | 19,5 | 19,5 | M12 | 30 | 13 | 27 | 66 | 67 |
| 76083 | 98 | 22 | 148 | 49,0 | 24,0 | 24,0 | M16 | 34 | 17 | 34 | 80 | 95 |
| | | | | | | | | | | | |
More Information | Order no. | 76083 |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size | |
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Similar products
Block with positioning Nr. 89045 Support height 160 mm, dia. drilling 22 mm, grid 50 mm, length 148 mm, width 98 mm
Block Nr. 87726 Support height 160 mm, dia. drilling 22 mm, grid 50 mm, length 160 mm, width 96 mm
