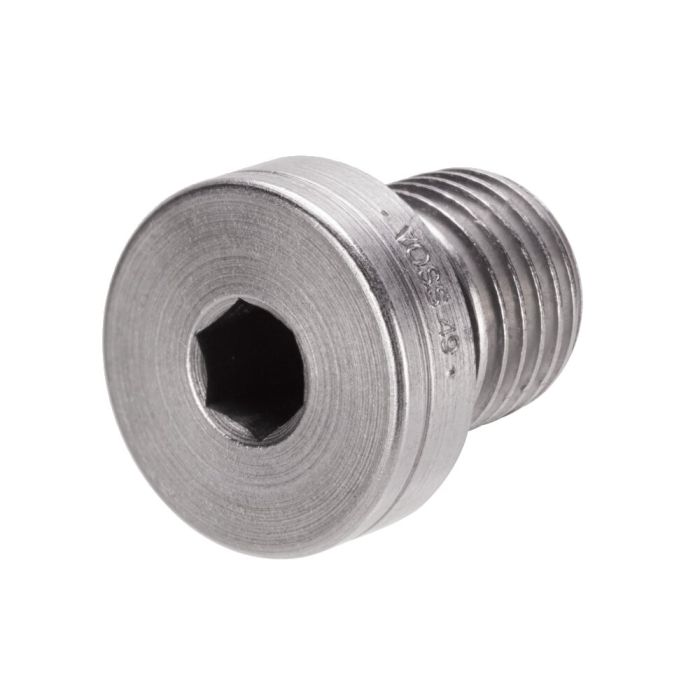

Breather screw with filter
For ventilation of the spring space, thread G1/4
Order no.
343632
Design:
Housing, socket bolt and seal element (metal sealing action) made of stainless steel, soft seal made of FKM.
Application:
Vent screw for venting clamping devices and clamping elements. Compact and simple design or handling. Insensitive to external influences. Suitable for temperatures up to 150 °C. It is sufficient to open the vent screw by half a turn.
Note:
Only an Allen key SW3 is required for bleeding. The inner vent screw is opened anticlockwise. Therefore, there is no risk of loosening the outer screw when closing. Observe torque specifications.
| Order no. | 343632 |
|---|---|
| Product type | Hose fittings |
| Max. operating pressure [bar] | 400 |
| Oil port | Thread |
