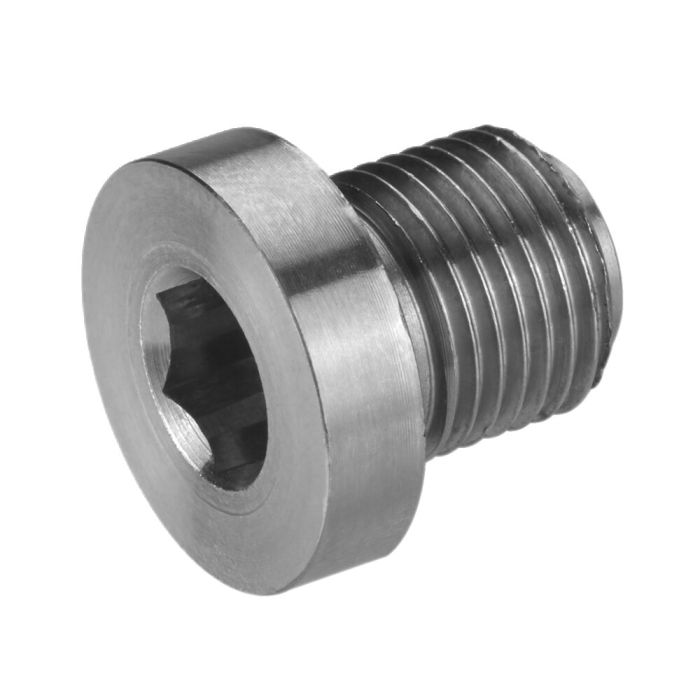

Vent screw
For venting clamping devices, max. operating pressure 400 bar, thread G1/4
Order no.
563492
Design:
Housing, socket bolt and seal element (metal sealing action) made of stainless steel, soft seal made of FKM.
Application:
Vent screw for venting clamping devices and clamping elements. Compact and simple design or handling. Insensitive to external influences. Suitable for temperatures up to 150 °C. It is sufficient to open the vent screw by half a turn.
Note:
Only an Allen key SW3 is required for bleeding. The inner vent screw is opened anticlockwise. Therefore, there is no risk of loosening the outer screw when closing. Observe torque specifications.
| Order no. | 563492 |
|---|---|
| Product type | Hose fittings |
| Max. operating pressure [bar] | 400 |
| Oil port | Thread |
