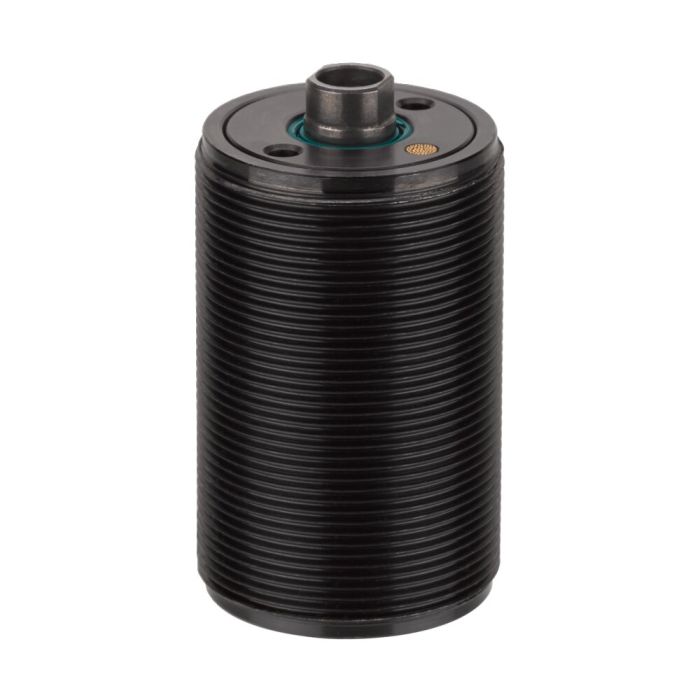

Built-In Cylinder
Max. clamping force 50 kN, max. stroke 12 mm, single acting
Order no.
63156
Design:
Steel, zinc-plated. Hardness class 17H.
Application:
The flange nuts hold cylinders in the required position.
* not to DIN
| Order no. | 63156 |
|---|---|
| Max. clamping force [kN] | 50 |
| Max. operating pressure [bar] | 400 |
| Type of actuation | Single acting |
| Stroke [mm] | 12 |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Screw-in fitting, straight, heavy-duty Nr. 175323 For steel tubes with outer diameter 8 mm and internal diameter 4 mm, with olive ring, max. operating pressure 630 bar
- Bulkhead fitting, straight, heavy-duty Nr. 131631 For steel tubes with outer diameter 8 mm and internal diameter 4 mm, with olive ring, max. operating pressure 800 bar
Similar products
- Threaded Cylinder bottom sealing, with spherical piston rod Nr. 60087 Max. clamping force 40 kN, max. stroke 20 mm, single acting
