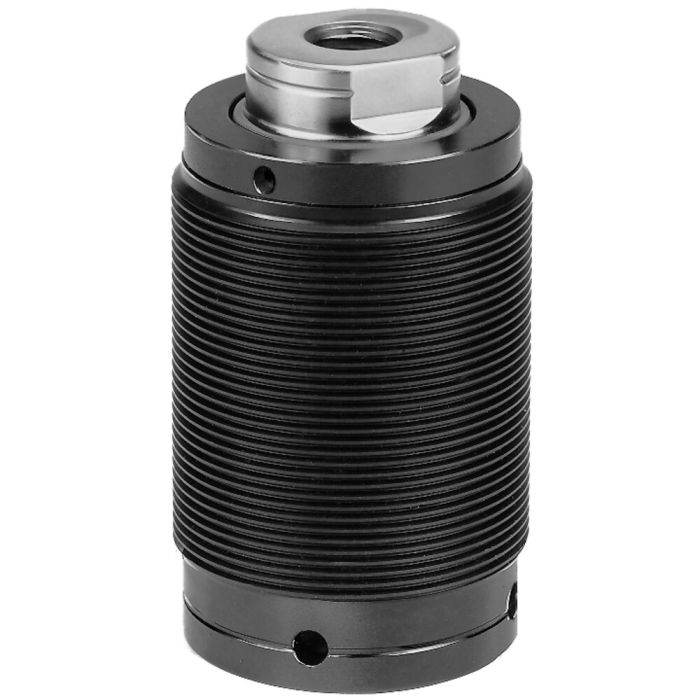

Built-In Cylinder

Max. clamping force 17,8 kN, max. stroke 12,5 mm, single acting

Order no.

67843

Product variants

Order no.	Article no.	Compressive force Vh at 100 bar [kN]	Compressive force Vh at 350 bar [kN]	Stroke C [mm]	Vol. VH [cm³]	Piston area VH [cm²]	Weight [g]
67843	6925-18-1	5,08	17,8	12,5	6,4	5,1	304
67868	6925-18-2	5,08	17,8	25,5	13,0	5,1	354
67884	6925-18-3	5,08	17,8	51,0	26,0	5,1	463
67900	6925-40-1	11,40	39,9	12,5	14,2	11,4	644
67926	6925-40-2	11,40	39,9	25,5	29,0	11,4	744

Order no.	dia. a	b	D	E	F	G	SW	J x depth	k	dia. L
67843	20,1	68,0	12,5	39,5	8	M35x1,5	17	M8x11	6,5	30,5
67868	20,1	80,5	12,5	52,5	8	M35x1,5	17	M8x11	6,5	30,5
67884	20,1	109,0	12,5	81,0	8	M35x1,5	17	M8x11	6,5	30,5
67900	28,2	70,0	12,5	39,5	10	M48x1,5	25	M12x13	9,0	45,0
67926	28,2	83,0	12,5	52,5	10	M48x1,5	25	M12x13	9,0	45,0

Details

Design:
Cylinder barrel from steel, hardened and burnished. Piston and piston rod case hardened and ground. Piston rod with internal thread. Wiper at piston rod. Cylinder barrel with metric fine thread for locknut to DIN 70852. Oil supply via threaded port.

Application:
Suitable to convert mechanical fixtures into hydraulic operated. The built-in cylinder can easily be mounted and adjusted into fixture walls by flange nuts. Universal cylinder for clamping, pushing, locking, rivetting and punching.

Features:
The metric thread extending over the whole length of the cylinder permits with its two flange nuts DIN 70852 lengthwise adjustment over a large range. Tapped piston rod end allows the use of individual contact bolts.

Note:
The system has to be completely vented during installation.

VH = work stroke, RH = back stroke
