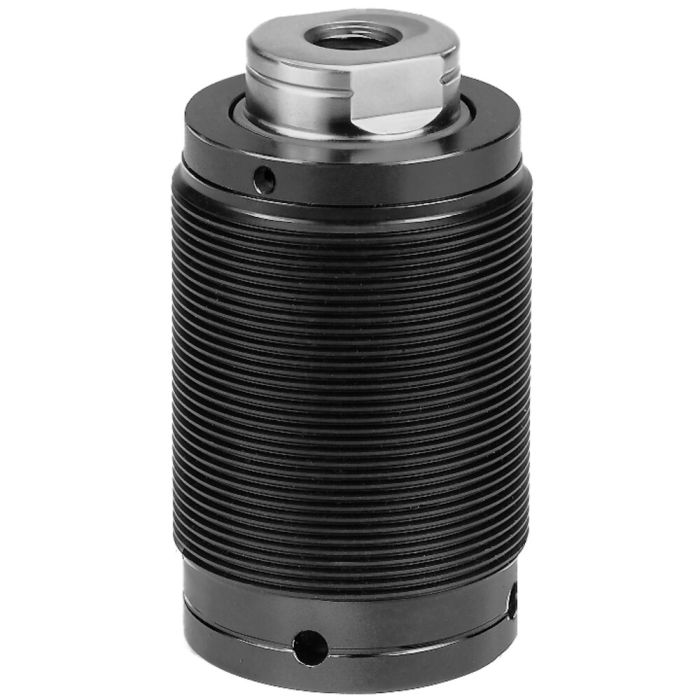

Built-In Cylinder
Design:
Cylinder barrel from steel, burnished. Piston and piston rod case hardened and ground. Wiper at piston rod, union nut with cutting ring. Oil supply via threaded port.
Features:
Hoses or tubes can be directly screwed onto the threaded cylinders.
Note:
Pistons of these cylinders must not be loaded in retracted position. Care for protection against aggressive lubricants and coolants. As the cylinder has no stop for the tube, the preassembly of the cutting ring has to be effected by means of a hardened pre-mounting tool. Due to the construction size, an internal stop for the piston is not possible. Therefore, please do not operate the threaded cylinder without workpiece, as the spring could be damaged or its spring force could be reduced.
| Order no. | 67983 |
|---|---|
| Max. clamping force [kN] | 39.9 |
| Max. operating pressure [bar] | 350 |
| Type of actuation | Double acting |
| Stroke [mm] | 25.5 |
