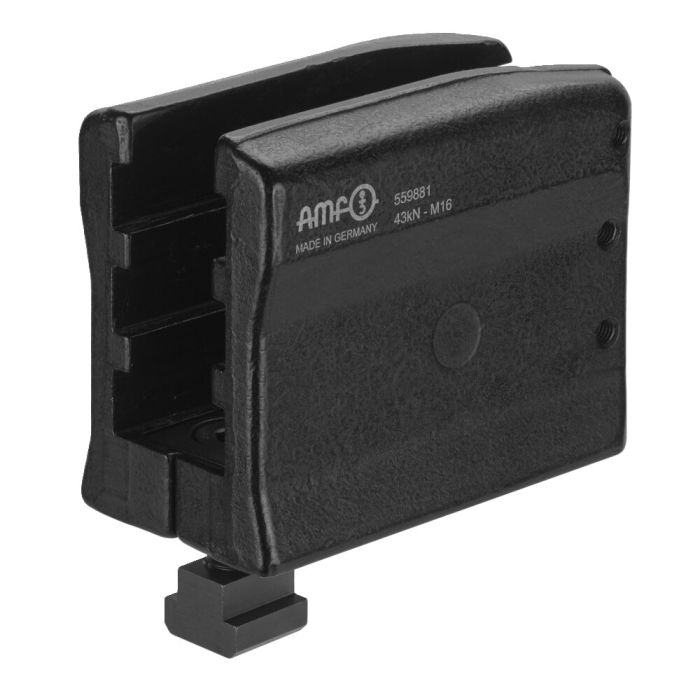

Carrier element 3-step
Size 43, slot 18 mm, grid plate M16, height 116 mm
| Order no. | Size | m | Slot | H | H2 | L | Weight
[g] | Availability | Your Price |
| 559925 | 22 | M12 | 14 | 9 - 74 | 67 | 65 | 795 | | |
| 559926 | 30 | M12 | 14 | 13 - 129 | 101 | 130 | 3440 | | |
| 559930 | 43 | M16 | 18 | 16 - 147 | 116 | 150 | 5010 | | |
| 559931 | 49 | M20 | 22 | 16 - 169 | 138 | 170 | 7710 | | |
| | | | | | | | | |
| Order no. | A1 | A2 | b | B1 | E1 | Md
[Nm] |
| 559925 | 25,0 | 16,5 | 52 | 13,5 | 14,5 | 40 |
| 559926 | 34,0 | 27,0 | 68 | 13,5 | 22,5 | 70 |
| 559930 | 43,0 | 29,0 | 75 | 17,5 | 25,0 | 150 |
| 559931 | 51,5 | 34,0 | 85 | 22,0 | 29,0 | 200 |
| | | | | | |
More Information | Order no. | 559930 |
|---|
| Product type | Power clamp |
|---|
| Size/load static [kN] | 43 |
|---|
| Slot [mm] | 18 |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size | |
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Similar products
Power clamp 3-step Nr. 559881 Size 43, max. load static 43 kN, grid plate M16, height 16-147 mm
