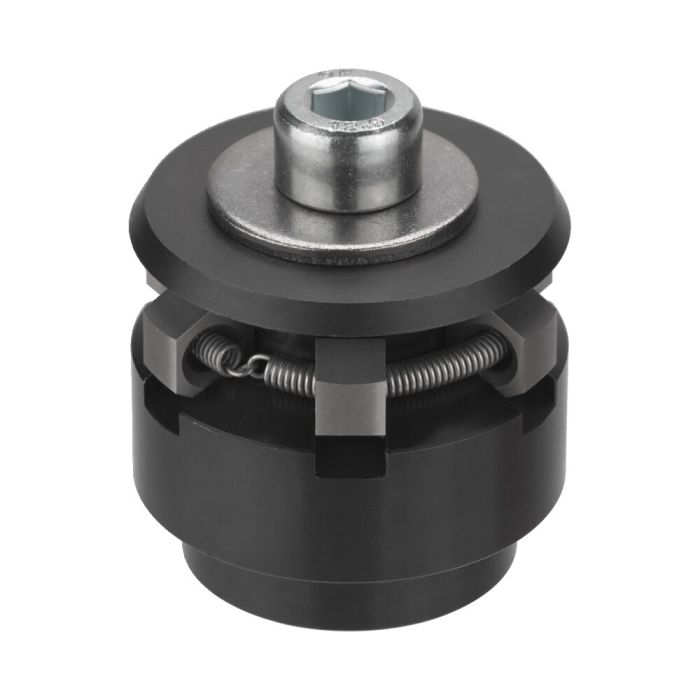

Centring clamp with protective segments ⌀ 22,5-26,5 mm, clamping range 13-14,1 mm, max. clamping force 5 kN
Order no. D min. D max. A min. A max. H P Weight Availability Your Price 373464 14,5 18,5 8,6 9,8 14,3 3,5 26
373472 18,5 22,5 10,4 11,5 16,6 4,5 45
373480 22,5 26,5 13,0 14,1 19,7 5,0 73
373498 26,5 30,5 13,0 14,2 19,9 5,0 95
373506 30,5 38,5 11,7 14,0 23,2 5,0 131
373514 38,5 46,5 15,5 18,0 27,2 6,5 259
373522 46,5 54,5 15,7 18,0 27,2 6,5 343
373530 54,5 70,5 19,1 23,7 40,7 8,0 675
373548 70,5 86,5 23,6 28,3 46,0 10,0 1347
373555 86,5 102,5 25,6 30,3 51,1 10,0 2099
Order no. b C E f7 G HE I ±0,1 k L Q QD SW SW2 373464 19,3 5,5 12 M4 2,0 4,5 2,0 2,3 3 4 3 4 373472 22,8 7,5 15 M5 2,5 5,5 2,5 2,3 3 4 4 4 373480 28,7 6,0 20 M6 3,0 7,0 3,0 2,3 3 4 5 4 373498 28,9 6,0 20 M6 3,0 7,0 3,0 2,3 3 4 5 4 373506 32,2 7,0 25 M6 4,0 9,0 4,0 4,6 3 8 5 8 373514 39,2 7,5 30 M8 4,0 11,0 4,0 4,6 6 8 6 8 373522 39,2 7,5 30 M8 4,0 11,0 4,0 4,6 6 8 6 8 373530 54,7 9,0 45 M10 5,0 15,0 5,0 9,2 6 16 8 16 373548 63,0 10,0 60 M12 5,0 17,0 5,0 9,2 6 16 10 16 373555 72,1 10,0 60 M16 5,0 25,0 5,0 9,2 6 16 14 16
Application:
Note:
Advantage:
Q = number of segments
More Information Order no. 373480 Product type Centring clamp Min. clamping diameter [mm] 22.5 Max. clamping diameter [mm] 26.5 Special features With protective segments
