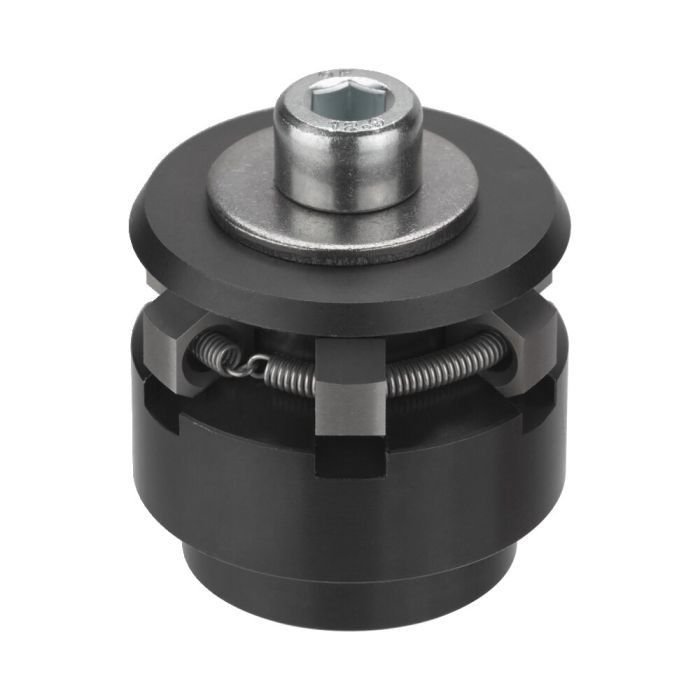

Centring clamp with protective segments
⌀ 26,5-30,5 mm, clamping range 13-14,2 mm, max. clamping force 5 kN
Order no.
373498
Application:
For surface-protecting and centric positioning and clamping in holes.
Note:
For deep installation, clearance D max. must be provided.
Installation tool: Retaining pin for determining the precise position of the segments. (supplied without installation tool)
Advantage:
- Low installation height
- Clamping in the zero point
- Pull-down effect
- Distortion-free clamping
Q = number of segments
| Order no. | 373498 |
|---|---|
| Product type | Centring clamps |
| Min. clamping diameter [mm] | 26.5 |
| Max. clamping diameter [mm] | 30.5 |
| Spring force [kN] | 5 |
| Special features | With protective segments |
