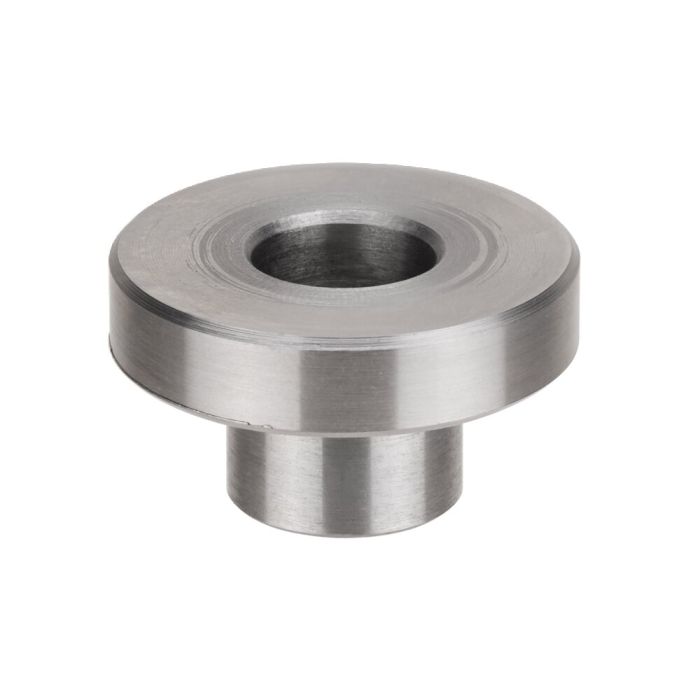

Centring pin
Diameter 22 mm
Order no.
550198
Application:
To position the double clamping modules on a clamping plate with clearance holes or a foot element from the "Modular height adapter" AMF clamping system.
Note:
The centring pin is used when the double clamping module is not yet positioned with a pull-stud for T-slot and can be clamped.
Advantage:
Highly-precise positioning of the double clamping module.
| Order no. | 550198 |
|---|---|
| Product type | Modular zero-point clamping system |
| Operating mode | Mechanical, Hydraulic, Pneumatic |
| Size clamping module | 5, 10, 20 |
