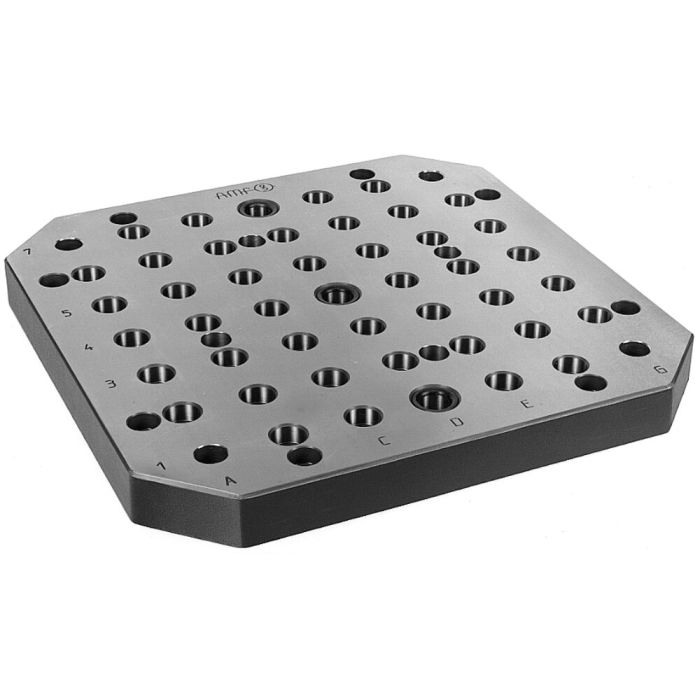

Clamping pallet Clamping thread M12, grid 40 mm, size 400x400 mm
Order no. Article no. Z1 x R Z2 x R No's of positioning holes Weight Availability Your Price 86942 6361D-320x320-1 240 240 48 27
86967 6361D-320x400-1 240 320 61 34
86983 6361D-400x400-1 320 320 75 42
87023 6361D-400x500-1 320 400 92 53
87064 6361D-500x500-1 400 400 115 69
87106 6361D-500x630-1 400 560 158 84
87148 6361D-630x630-1 560 560 214 131
87189 6361D-630x800-1 560 720 272 165
87221 6361D-800x800-1 720 720 345 254
87262 6361D-800x1000-1 720 880 428 320
Order no. Size AxB H Tolerance H dia. N dia. p Alignment holes L1 ±0.013 Alignment holes L3 ±0.013 dia. S J T1 ±0.2 T2 ±0.2 T3 ±0.2 T5 ±0.2 U1 ±0.2 U2 ±0.2 U3 ±0.2 U4 ±0.2 86942 320x320 38 ± 0,02 20F7 20F7 100 - 13 40 100 - - 25 100 - - 25 86967 320x400 38 ± 0,02 20F7 20F7 100 150 13 40 100 100 - 25 100 175 - 25 86983 400x400 38 ± 0,02 20F7 20F7 150 - 13 50 150 100 175 25 150 175 100 25 87023 400x500 38 ± 0,02 20F7 20F7 150 200 13 50 150 100 175 25 200 175 100 25 87064 500x500 38 ± 0,02 20F7 20F7 200 - 13 60 200 100 225 25 200 225 100 25 87106 500x630 38 ± 0,02 20F7 20F7 200 200 13 60 200 100 225 25 200 225 100 25 87148 630x630 47 ± 0,03 25F7 25F7 200 - 17 70 200 100 300 100 200 300 100 100 87189 630x800 47 ± 0,03 25F7 25F7 200 300 17 70 200 100 300 100 200 300 100 100 87221 800x800 57 ± 0,035 25F7 25F7 300 - 17 100 300 100 300 100 300 300 100 100 87262 800x1000 57 ± 0,035 25F7 25F7 300 400 17 100 300 100 300 100 300 300 100 100
Features:
More Information Order no. 86983
