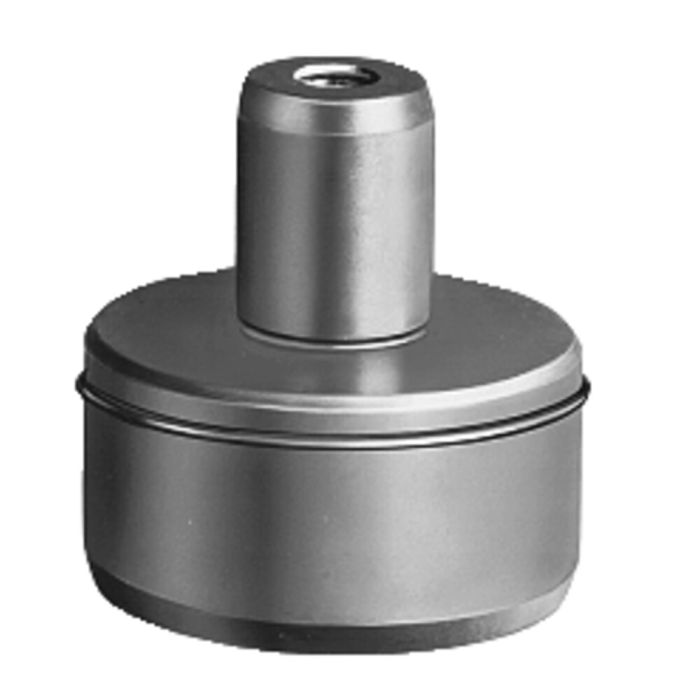

Centring pin, reduced dia., with pilot dia.
For centring 6361 & 6362 on machine pallets, dia. pin 50 mm, dia. pilot 20 mm
Order no.
78766
Application:
used for centring - clamping pallet No. 6361 - clamping angle No. 6362 on DIN machine pallets.
| Order no. | 78766 |
|---|
