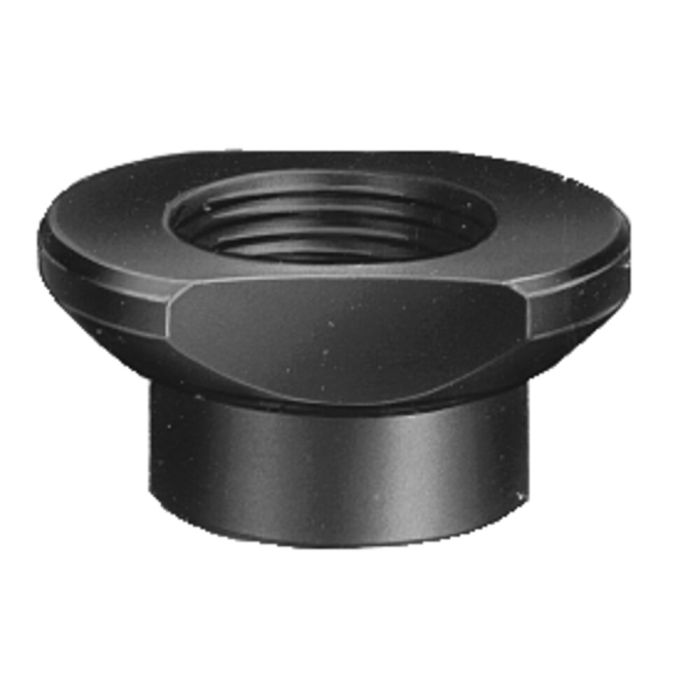

Centring sleeve with flats
For positioning support-stop elements with slot 6363-001 and 6363-026, dia. drilling 16 mm
Order no.
78014
Application:
These centring sleeves can be used in pairs for positioning support-stop elements with slot 6363-001 and 6363-026.
| Order no. | 78014 |
|---|
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Support strip with slot Nr. 300012 Support height 30 mm, dia. drilling 16 mm, slot 20 mm, length 110 mm, width 39 mm
- Support-stop block Nr. 77958 Dist. fr. face to loc. holes 15 mm, support height 30 mm, slot 20 mm, length 99 mm, width 39 mm
