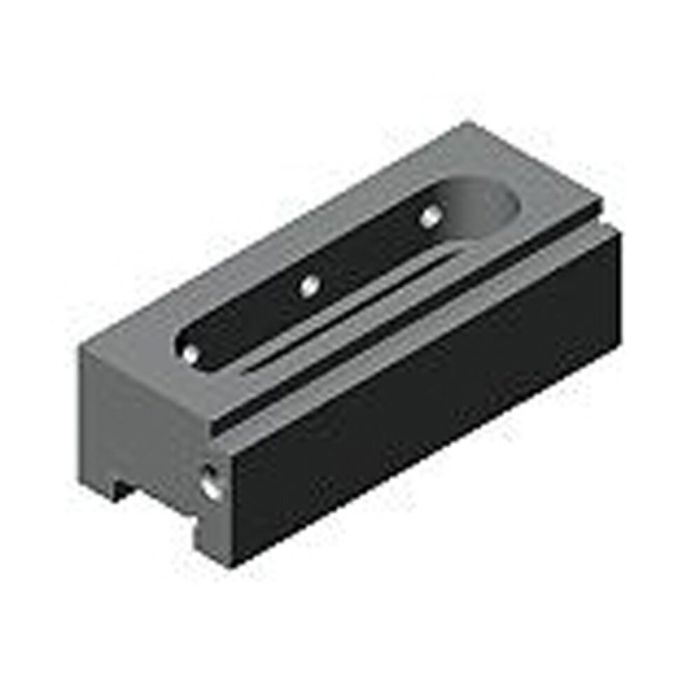

Support-stop block

Dist. fr. face to loc. holes 15 mm, support height 30 mm, slot 20 mm, length 99 mm, width 39 mm

Order no.

77958

Order no.	Article no.	Dist. fr. face to loc. holes A ±0.01	Dist. fr. face to loc. holes A1 ±0.01	Support height H ±0.01	Support height H1 ±0.01	N H7	Weight [g]
77958	6363-12-001	15	20	25	30	20	465
78212	6363-16-001	20	30	30	40	24	1310

Order no.	b	E	F	G	L	L1	L2	L3	L4	L5	S	S1
77958	39	6	16	M6	99	19	30,5	17	15	7	12,5	19
78212	54	8	22	M8	123	24	37,5	20	20	8	17,0	25

More Information
Order no.	77958

CAD

If you are missing a download, please write to us using our contact form.

Area	Language	File name	Type	File size

For general downloads, such as catalogs and brochures, please click here.

Similar products

Support-stop block, single-sided Nr. 88807 Dist. fr. face to loc. holes 15 mm, support height 30 mm, dia. drilling 16 mm, grid 40 mm, length 78 mm
