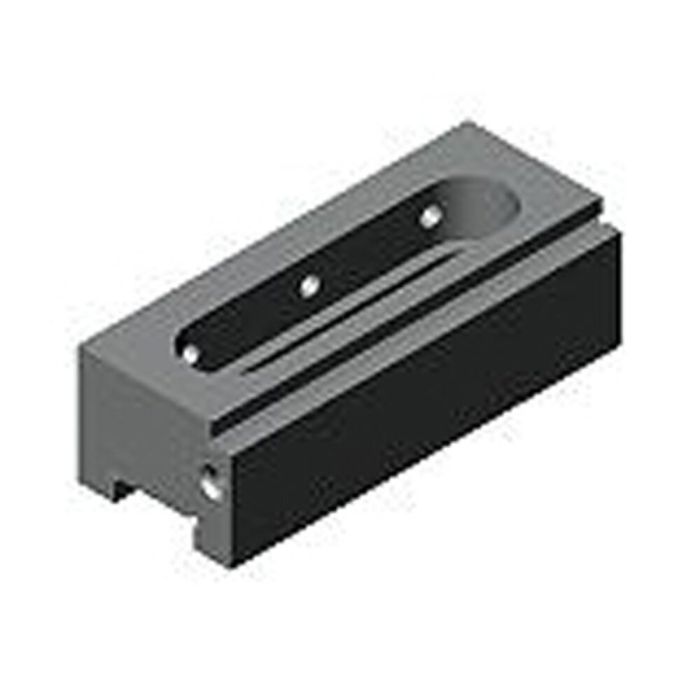

Support-stop block

Dist. fr. face to loc. holes 20 mm, support height 40 mm, slot 24 mm, length 123 mm, width 54 mm

Order no.

78212

Order no.	Article no.	Dist. fr. face to loc. holes A ±0.01	Dist. fr. face to loc. holes A1 ±0.01	Support height H ±0.01	Support height H1 ±0.01	N H7	Weight [g]
77958	6363-12-001	15	20	25	30	20	465
78212	6363-16-001	20	30	30	40	24	1310

Order no.	b	E	F	G	L	L1	L2	L3	L4	L5	S	S1
77958	39	6	16	M6	99	19	30,5	17	15	7	12,5	19
78212	54	8	22	M8	123	24	37,5	20	20	8	17,0	25

More Information
Order no.	78212

CAD

If you are missing a download, please write to us using our contact form.

Area	Language	File name	Type	File size

For general downloads, such as catalogs and brochures, please click here.

Similar products

Support-stop block, single-sided Nr. 88815 Dist. fr. face to loc. holes 20 mm, support height 40 mm, dia. drilling 22 mm, grid 50 mm, length 88 mm
