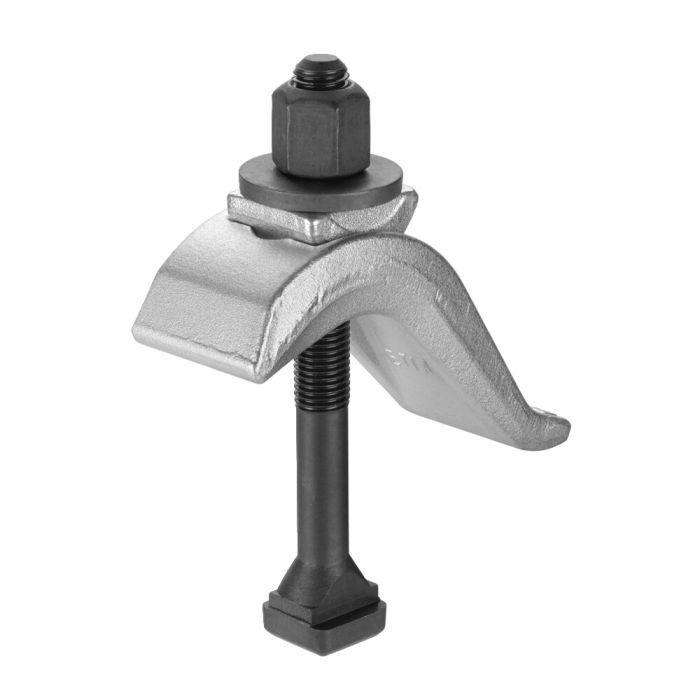

Clamp, continuously adjustable, complete
Slot 20 mm, with clamping stud M20x20x200, clamping height 0-85 mm
Order no.
74971
Application:
Stepless clamp for fast coverage of several ranges of work height without additional supports. Low space requirement on machine table. Heavy-duty design and specially suitable for clamping of press- and punching tools.
Note:
With the clamping jaw size 17 a maximum clamping height of 75 mm can be achieved with screws for T-slots DIN 787, length 160 mm.
| Order no. | 74971 |
|---|---|
| Clamping screw | With clamping bolt |
| Slot [mm] | 20 |
| Clamping screw metric [M] | 20 |
| Min. clamping height [mm] | 0 |
| Max. clamping height [mm] | 85 |
