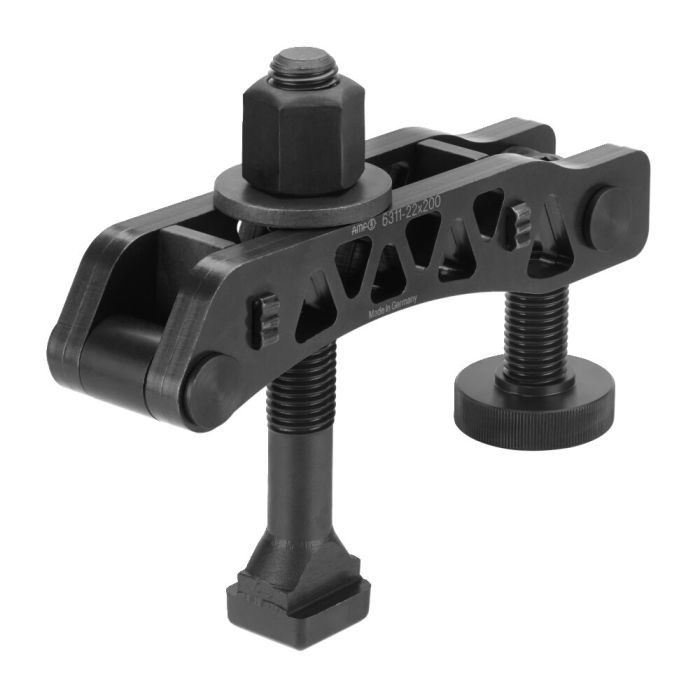

Clamp light design, with adjustable support screw, complete
Slot 20 mm, with clamping stud M20x20x160, clamping height 8-58 mm
Order no.
376731
Application:
The clamp is used for all clamping tasks in which clamping is effected via T-grooves, grooves and threaded bores.
Note:
For clamping, either clamping screws DIN 787, stud bolts DIN 6379 and cheese head screws ISO 4762 can be used.
Advantage:
Through the weight-saving design, the clamping iron is up to 50% lighter, but still offers 100% clamping force and can thus also be used even for rotating clamping tasks. Variable and fast adjustment option at a distance from the workpiece.
*depending on depth of slot to DIN 650 and position of fixture nut.
| Order no. | 376731 |
|---|---|
| Clamping screw | With clamping bolt |
| Slot [mm] | 20 |
| Clamping screw metric [M] | 20 |
| Min. clamping height [mm] | 8 |
| Max. clamping height [mm] | 58 |
