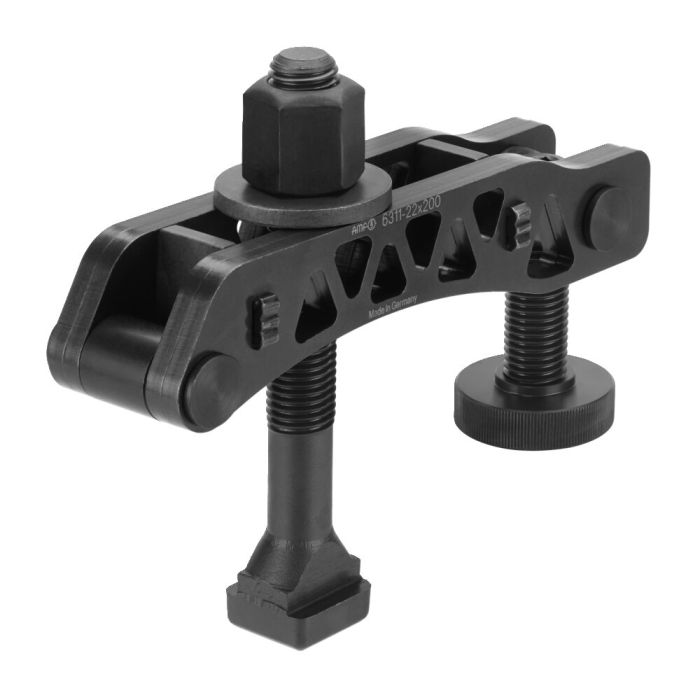

Clamp light design, with adjustable support screw, complete
Slot 24 mm, with clamping stud M24x28x200, clamping height 10-81 mm
Order no.
376772
Application:
The clamp is used for all clamping tasks in which clamping is effected via T-grooves, grooves and threaded bores.
Note:
For clamping, either clamping screws DIN 787, stud bolts DIN 6379 and cheese head screws ISO 4762 can be used.
Advantage:
Through the weight-saving design, the clamping iron is up to 50% lighter, but still offers 100% clamping force and can thus also be used even for rotating clamping tasks. Variable and fast adjustment option at a distance from the workpiece.
*depending on depth of slot to DIN 650 and position of fixture nut.
| Order no. | 376772 |
|---|---|
| Clamping screw | With clamping bolt |
| Slot [mm] | 24 |
| Clamping screw metric [M] | 24 |
| Min. clamping height [mm] | 10 |
| Max. clamping height [mm] | 81 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
Similar products
- Crocodile clamp, complete with DIN 787 Nr. 375006 Max. clamping force 75 kN, slot 28 mm, for clamping screw DIN 787 M24x28x250, height 0-100 mm
