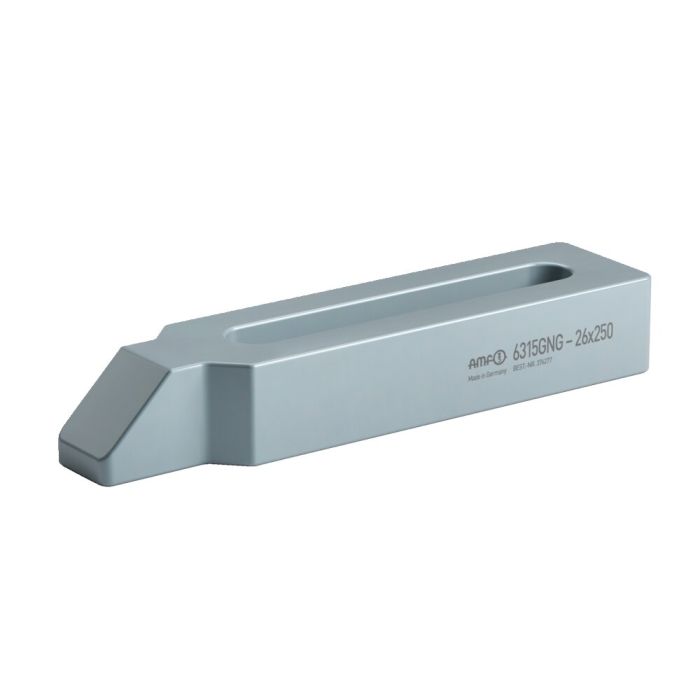

Clamp with nose, closed
For clamping screw metric M24 and inch 1, length 315 mm
| Order no. | B1 | L | for
clamping screw
metric | for
clamping screw
inch | A | b2 | B3 | E1 | E2 | L3 | Weight
[g] | Availability | Your Price |
| 376145 | 22 | 250 | M20 M22 | 3/4 | 40 | 60 | 35 | 68 | 160 | 45 | 3025 | | |
| 376160 | 22 | 315 | M20 M22 | 3/4 | 40 | 60 | 35 | 68 | 220 | 45 | 3810 | | |
| 376186 | 22 | 400 | M20 M22 | 3/4 | 50 | 60 | 35 | 68 | 300 | 45 | 5995 | | |
| 376202 | 22 | 500 | M20 M22 | 3/4 | 50 | 60 | 35 | 68 | 400 | 45 | 7440 | | |
| 376228 | 26 | 250 | M24 | 1 | 40 | 70 | 43 | 83 | 140 | 56 | 3639 | | |
| 376244 | 26 | 315 | M24 | 1 | 40 | 70 | 43 | 83 | 200 | 56 | 4560 | | |
| 376269 | 26 | 400 | M24 | 1 | 50 | 70 | 43 | 83 | 270 | 56 | 7243 | | |
| 376285 | 26 | 500 | M24 | 1 | 50 | 70 | 43 | 83 | 370 | 56 | 8937 | | |
| 376301 | 33 | 315 | M30 | 1 1/4 | 50 | 80 | 50 | 88 | 200 | 56 | 6367 | | |
| 376327 | 33 | 400 | M30 | 1 1/4 | 50 | 80 | 50 | 88 | 283 | 56 | 7798 | | |
| 376343 | 33 | 500 | M30 | 1 1/4 | 50 | 80 | 50 | 88 | 383 | 56 | 9607 | | |
| | | | | | | | | | | | | |
More Information | Order no. | 376244 |
|---|
| Clamping screw | Without clamping bolt |
|---|
| Clamping screw metric [M] | 24 |
|---|
| Clamping screw inch | 1 |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size | |
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Similar products
Clamp, cranked Nr. 71118 For clamping screw metric M24 and inch 1, length 250 mm
Clamp, flat Nr. 70102 For clamping screw metric M24 and inch 1, length 250 mm
