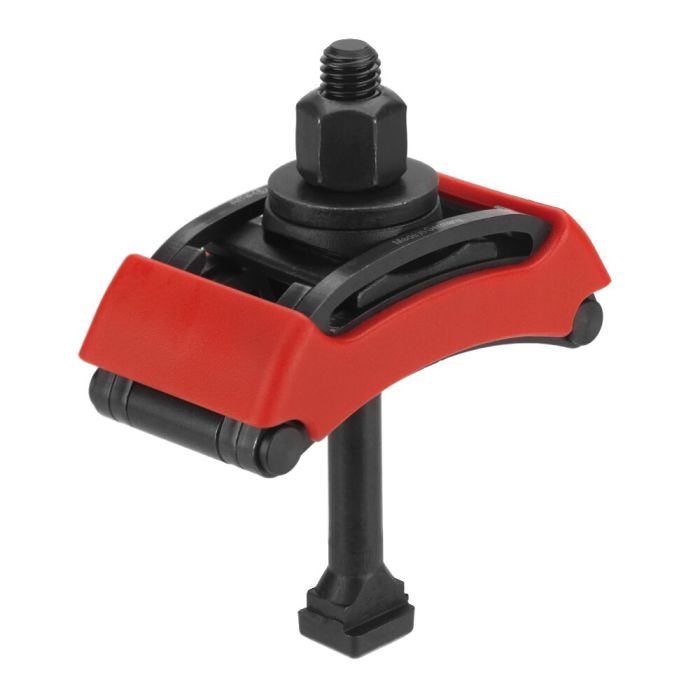

Clamp with plastic cap, complete
Slot 10 mm, with clamping stud M10x10x80, clamping height 0-15 mm
Order no.
376555
Application:
The clamp is used for all clamping tasks in which clamping is effected via T-grooves, grooves and threaded bores.
Note:
A washer DIN 6340 must always be used between the hexagonal nut and U-piece!
Advantage:
Weight-saving thanks to lightweight design. Variable and fast adjustment option at a distance from the workpiece. No additional clamping supports are needed to reach the required clamping height. The U-piece is undetachable from the clamp.
*depending on depth of slot to DIN 650 and position of fixture nut.
| Order no. | 376555 |
|---|---|
| Clamping screw | With clamping bolt |
| Slot [mm] | 10 |
| Clamping screw metric [M] | 10 |
| Min. clamping height [mm] | 0 |
| Max. clamping height [mm] | 15 |
