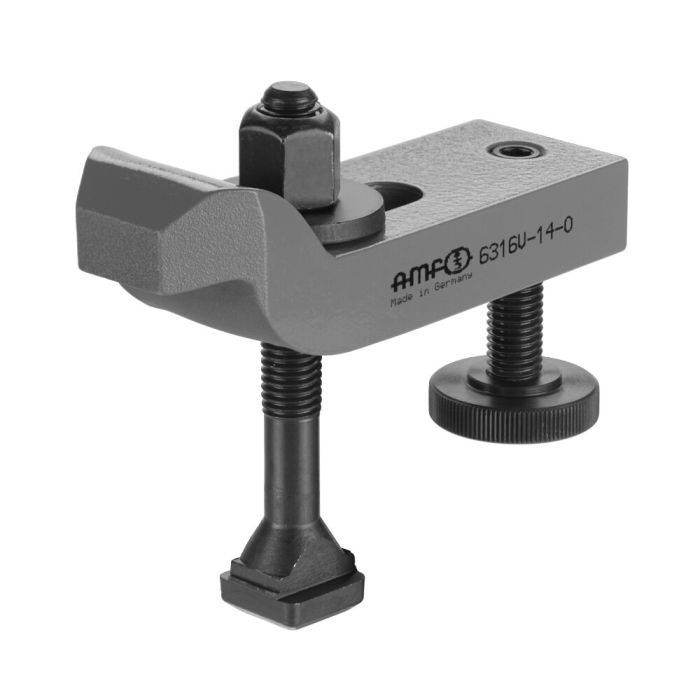

Cranked clamp with adjusting support screw, complete
Slot 10 mm, with clamping stud M10x10x80, clamping height 22-46 mm
Order no.
71274
*depending on depth of slot to DIN 650 and position of fixture nut.
Clamps without T-bolts are same item for sizes 12 and 14, 16 and 18, 20 and 22, each.
| Order no. | 71274 |
|---|---|
| Clamping screw | With clamping bolt |
| Slot [mm] | 10 |
| Clamping screw metric [M] | 10 |
| Min. clamping height [mm] | 22 |
| Max. clamping height [mm] | 46 |
