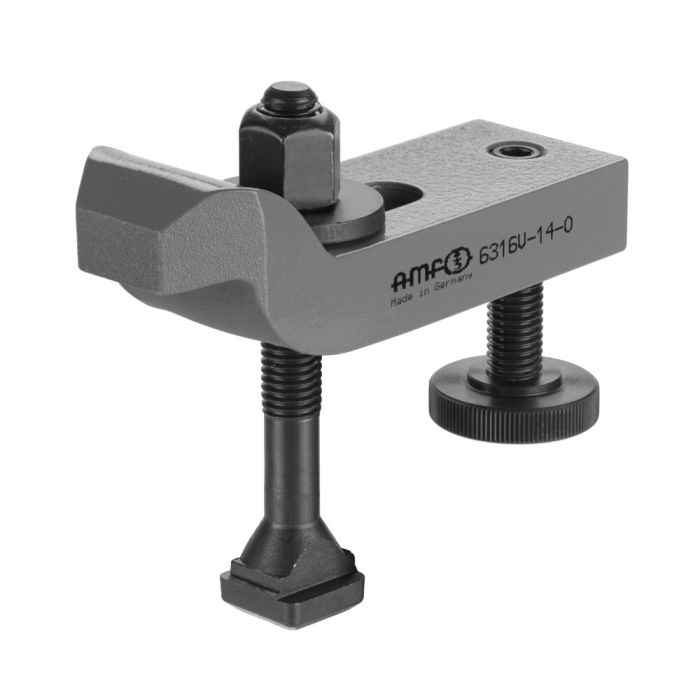

Cranked clamp with adjusting support screw, complete
Slot 22 mm, with clamping stud M20x22x160, clamping height 43-92 mm
Order no.
71324
*depending on depth of slot to DIN 650 and position of fixture nut.
Clamps without T-bolts are same item for sizes 12 and 14, 16 and 18, 20 and 22, each.
| Order no. | 71324 |
|---|---|
| Clamping screw | With clamping bolt |
| Slot [mm] | 22 |
| Clamping screw metric [M] | 20 |
| Min. clamping height [mm] | 43 |
| Max. clamping height [mm] | 92 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
Similar products
- Crocodile clamp, complete with DIN 787 Nr. 374967 Max. clamping force 70 kN, slot 22 mm, for clamping screw DIN 787 M20x22x250, height 0-100 mm
- Tapered clamp with adjusting support screw, complete Nr. 73072 Slot 22 mm, with clamping stud M20x22x200, clamping height 19-105 mm
- Stepped clamp with adjusting support screw, complete Nr. 73288 Slot 22 mm, with clamping stud M20x22x160, clamping height 16-75 mm
- Stepped clamp with adjusting support screw, complete Nr. 74666 Slot 22 mm, with clamping stud M20x22x160, clamping height 16-77 mm
