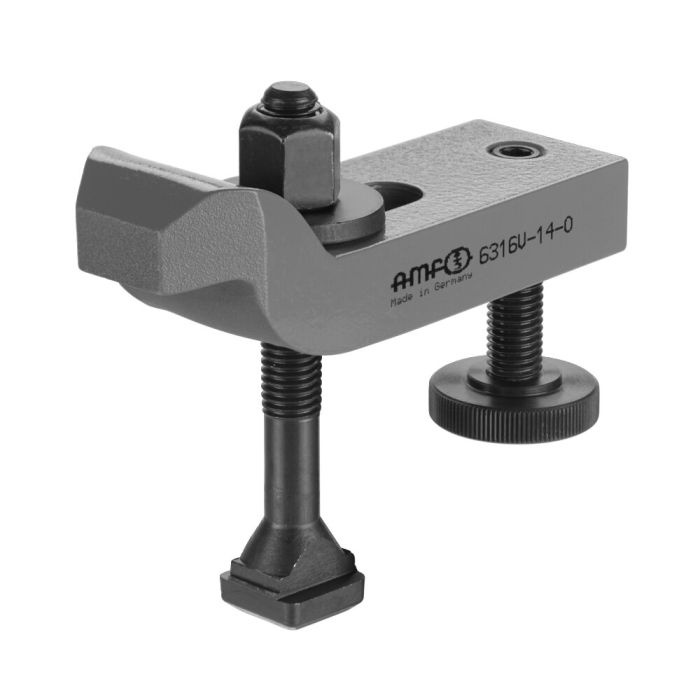

Cranked clamp with adjusting support screw, complete
Slot 12 mm, with clamping stud M12x12x100, clamping height 28-58 mm
Order no.
71282
*depending on depth of slot to DIN 650 and position of fixture nut.
Clamps without T-bolts are same item for sizes 12 and 14, 16 and 18, 20 and 22, each.
| Order no. | 71282 |
|---|---|
| Clamping screw | With clamping bolt |
| Slot [mm] | 12 |
| Clamping screw metric [M] | 12 |
| Min. clamping height [mm] | 28 |
| Max. clamping height [mm] | 58 |
