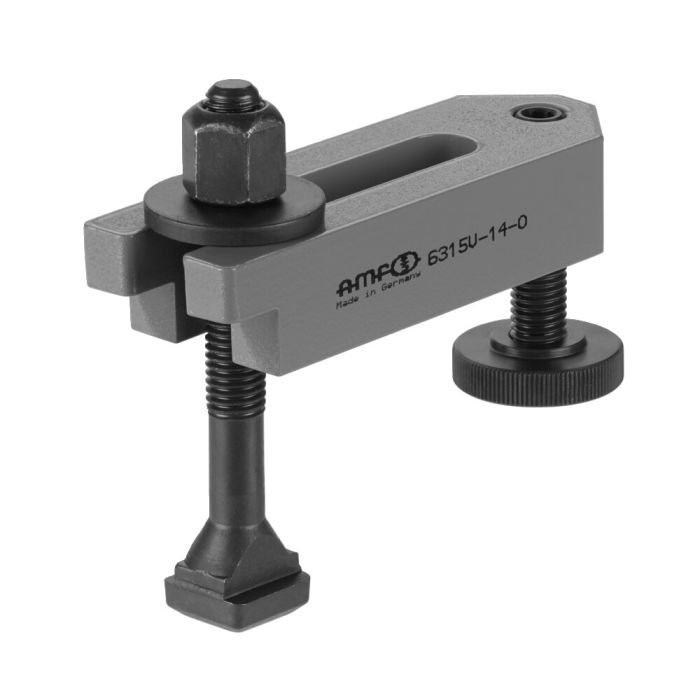

Stepped clamp with adjusting support screw, complete
Slot 12 mm, with clamping stud M12x12x100, clamping height 10-48 mm
Order no.
73197
*depending on depth of slot to DIN 650 and position of fixture nut.
To clamp thin parts, turn the clamp over.
Clamps without T-bolts are same item for sizes 12 and 14, 16 and 18, 20 and 22, each.
To clamp thin parts, turn the clamp over.
Clamps without T-bolts are same item for sizes 12 and 14, 16 and 18, 20 and 22, each.
| Order no. | 73197 |
|---|---|
| Clamping screw | With clamping bolt |
| Slot [mm] | 12 |
| Clamping screw metric [M] | 12 |
| Min. clamping height [mm] | 10 |
| Max. clamping height [mm] | 48 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
Similar products
- Stepped clamp with adjusting support screw, complete Nr. 74591 Slot 12 mm, with clamping stud M12x12x100, clamping height 10-48 mm
- Tapered clamp with adjusting support screw, complete Nr. 70276 Slot 12 mm, with clamping stud M12x12x100, clamping height 10-40 mm
- Cranked clamp with adjusting support screw, complete Nr. 71282 Slot 12 mm, with clamping stud M12x12x100, clamping height 28-58 mm
- Crocodile clamp, complete with DIN 787 Nr. 79806 Max. clamping force 30 kN, slot 12 mm, for clamping screw DIN 787 M12x12x125, height 0-55 mm
