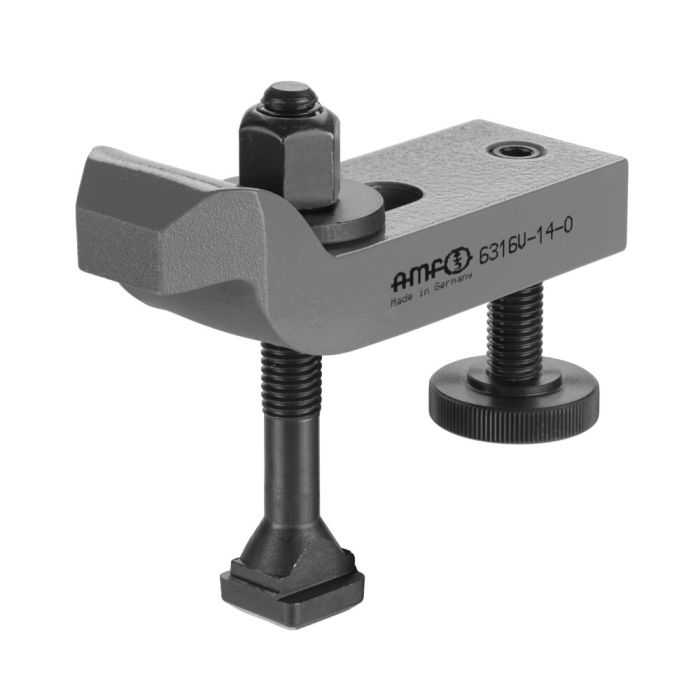

Cranked clamp with adjusting support screw, complete
Slot 16 mm, with clamping stud M16x16x125, clamping height 36-71 mm
Order no.
71308
*depending on depth of slot to DIN 650 and position of fixture nut.
Clamps without T-bolts are same item for sizes 12 and 14, 16 and 18, 20 and 22, each.
| Order no. | 71308 |
|---|---|
| Clamping screw | With clamping bolt |
| Slot [mm] | 16 |
| Clamping screw metric [M] | 16 |
| Min. clamping height [mm] | 36 |
| Max. clamping height [mm] | 71 |
