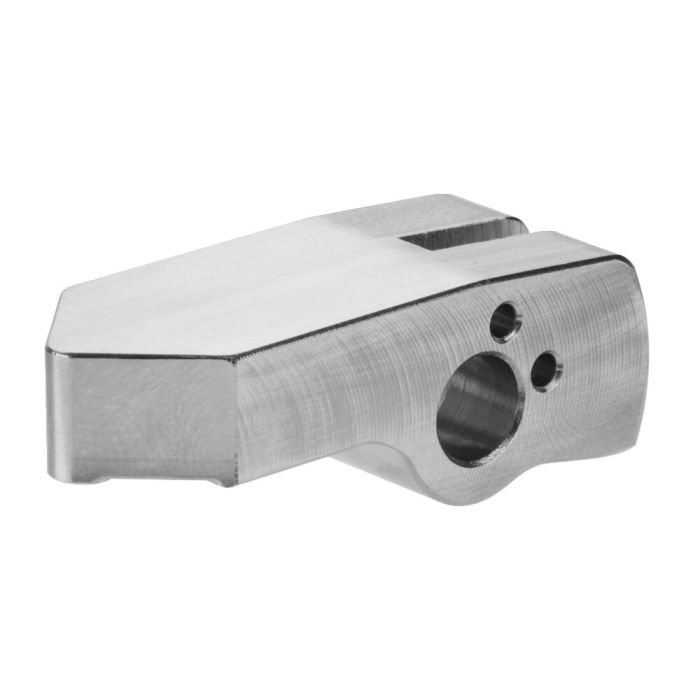

Clamping arm
For vertical clamp with pivot arm 6958DH, load lever 28 mm, max. clamping force 25,4 kN
| Order no. | Article no. | Clamping force F1 at 100 bar
[kN] | Clamping force F1
at 250 bar
[kN] | b | C | dia. D
| k | L | N | P | R | Weight
[g] | Availability | Your Price |
| 570530 | 6958DH-12-04-01 | 1,7 | 4,4 | 9,00 | 9,0 | 5 | 6,0 | 10,5 | 3,5 | 12 | 1,5 | 12 | | |
| 570531 | 6958DH-12-04-02 | 1,1 | 3,0 | 9,00 | 13,5 | 5 | 6,0 | 15,0 | 3,5 | 12 | 1,5 | 14 | | |
| 570532 | 6958DH-12-04-03 | 8,0 | 2,2 | 9,00 | 18,0 | 5 | 6,0 | 19,5 | 3,5 | 12 | 1,5 | 17 | | |
| 570533 | 6958DH-16-04-01 | 2,5 | 6,4 | 12,00 | 12,0 | 6 | 8,0 | 14,0 | 4,5 | 16 | 2,0 | 29 | | |
| 570534 | 6958DH-16-04-02 | 1,7 | 4,2 | 12,00 | 18,0 | 6 | 8,0 | 20,0 | 4,5 | 16 | 2,0 | 35 | | |
| 570535 | 6958DH-16-04-03 | 1,2 | 3,2 | 12,00 | 24,0 | 6 | 8,0 | 26,0 | 4,5 | 16 | 2,0 | 41 | | |
| 570536 | 6958DH-20-04-01 | 4,5 | 11,3 | 15,00 | 15,0 | 8 | 10,0 | 17,5 | 5,5 | 20 | 2,5 | 53 | | |
| 570537 | 6958DH-20-04-02 | 3,0 | 7,5 | 15,00 | 22,5 | 8 | 10,0 | 25,0 | 5,5 | 20 | 2,5 | 65 | | |
| 570538 | 6958DH-20-04-03 | 2,2 | 5,7 | 15,00 | 30,0 | 8 | 10,0 | 32,5 | 5,5 | 20 | 2,5 | 77 | | |
| 570539 | 6958DH-25-04-01 | 7,0 | 17,4 | 18,75 | 19,0 | 10 | 12,5 | 22,0 | 6,0 | 25 | 3,0 | 106 | | |
| 570540 | 6958DH-25-04-02 | 4,7 | 11,6 | 18,75 | 28,5 | 10 | 12,5 | 31,5 | 6,0 | 25 | 3,0 | 128 | | |
| 570541 | 6958DH-25-04-03 | 3,5 | 8,7 | 18,75 | 38,0 | 10 | 12,5 | 41,0 | 6,0 | 25 | 3,0 | 150 | | |
| 570542 | 6958DH-32-04-01 | 10,1 | 25,4 | 24,00 | 24,0 | 12 | 16,0 | 28,0 | 7,0 | 32 | 4,0 | 227 | | |
| 570543 | 6958DH-32-04-02 | 6,7 | 17,0 | 24,00 | 36,0 | 12 | 16,0 | 40,0 | 7,0 | 32 | 4,0 | 273 | | |
| 570544 | 6958DH-32-04-03 | 5,0 | 12,7 | 24,00 | 48,0 | 12 | 16,0 | 52,0 | 7,0 | 32 | 4,0 | 318 | | |
| | | | | | | | | | | | | | |
Design:
Clamping arm, case-hardened steel.
Application:
For vertical clamp with pivot arm 6958DH.
Note:
Clamping pressure, lever ratio, flow volume and clamp arm weight must always be observed.
More Information | Order no. | 570542 |
|---|
| Product type | Clamping arm |
|---|
| Max. clamping force [kN] | 25.4 |
|---|
| Max. operating pressure [bar] | 250 |
|---|
| Special features | With pivot arm |
|---|
