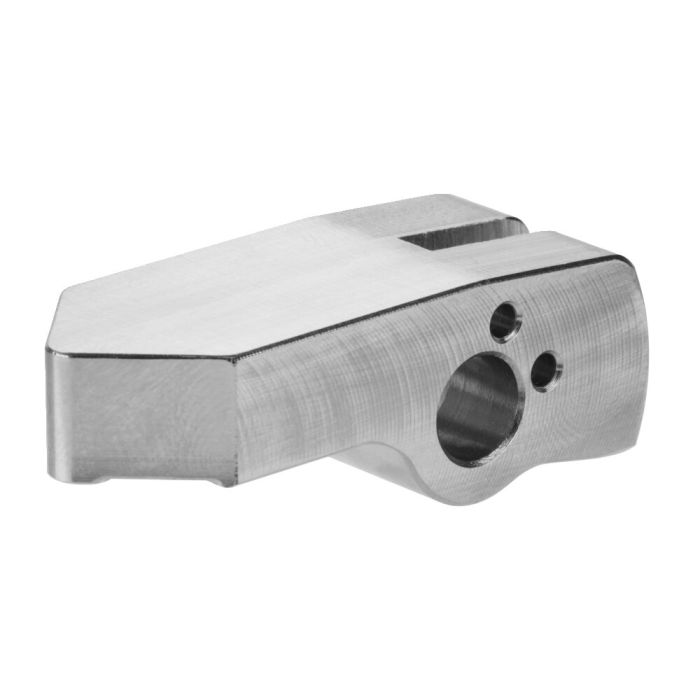

Clamping arm
For vertical clamp with pivot arm 6958DH, load lever 17,5 mm, max. clamping force 11,3 kN
| Order no. | Article no. | Clamping force F1 at 100 bar
[kN] | Clamping force F1
at 250 bar
[kN] | b | C | dia. D
| k | L | N | P | R | Weight
[g] | Availability | Your Price |
| 570530 | 6958DH-12-04-01 | 1,7 | 4,4 | 9,00 | 9,0 | 5 | 6,0 | 10,5 | 3,5 | 12 | 1,5 | 12 | | |
| 570531 | 6958DH-12-04-02 | 1,1 | 3,0 | 9,00 | 13,5 | 5 | 6,0 | 15,0 | 3,5 | 12 | 1,5 | 14 | | |
| 570532 | 6958DH-12-04-03 | 8,0 | 2,2 | 9,00 | 18,0 | 5 | 6,0 | 19,5 | 3,5 | 12 | 1,5 | 17 | | |
| 570533 | 6958DH-16-04-01 | 2,5 | 6,4 | 12,00 | 12,0 | 6 | 8,0 | 14,0 | 4,5 | 16 | 2,0 | 29 | | |
| 570534 | 6958DH-16-04-02 | 1,7 | 4,2 | 12,00 | 18,0 | 6 | 8,0 | 20,0 | 4,5 | 16 | 2,0 | 35 | | |
| 570535 | 6958DH-16-04-03 | 1,2 | 3,2 | 12,00 | 24,0 | 6 | 8,0 | 26,0 | 4,5 | 16 | 2,0 | 41 | | |
| 570536 | 6958DH-20-04-01 | 4,5 | 11,3 | 15,00 | 15,0 | 8 | 10,0 | 17,5 | 5,5 | 20 | 2,5 | 53 | | |
| 570537 | 6958DH-20-04-02 | 3,0 | 7,5 | 15,00 | 22,5 | 8 | 10,0 | 25,0 | 5,5 | 20 | 2,5 | 65 | | |
| 570538 | 6958DH-20-04-03 | 2,2 | 5,7 | 15,00 | 30,0 | 8 | 10,0 | 32,5 | 5,5 | 20 | 2,5 | 77 | | |
| 570539 | 6958DH-25-04-01 | 7,0 | 17,4 | 18,75 | 19,0 | 10 | 12,5 | 22,0 | 6,0 | 25 | 3,0 | 106 | | |
| 570540 | 6958DH-25-04-02 | 4,7 | 11,6 | 18,75 | 28,5 | 10 | 12,5 | 31,5 | 6,0 | 25 | 3,0 | 128 | | |
| 570541 | 6958DH-25-04-03 | 3,5 | 8,7 | 18,75 | 38,0 | 10 | 12,5 | 41,0 | 6,0 | 25 | 3,0 | 150 | | |
| 570542 | 6958DH-32-04-01 | 10,1 | 25,4 | 24,00 | 24,0 | 12 | 16,0 | 28,0 | 7,0 | 32 | 4,0 | 227 | | |
| 570543 | 6958DH-32-04-02 | 6,7 | 17,0 | 24,00 | 36,0 | 12 | 16,0 | 40,0 | 7,0 | 32 | 4,0 | 273 | | |
| 570544 | 6958DH-32-04-03 | 5,0 | 12,7 | 24,00 | 48,0 | 12 | 16,0 | 52,0 | 7,0 | 32 | 4,0 | 318 | | |
| | | | | | | | | | | | | | |
Design:
Clamping arm, case-hardened steel.
Application:
For vertical clamp with pivot arm 6958DH.
Note:
Clamping pressure, lever ratio, flow volume and clamp arm weight must always be observed.
More Information | Order no. | 570536 |
|---|
| Product type | Clamping arm |
|---|
| Max. clamping force [kN] | 11.3 |
|---|
| Max. operating pressure [bar] | 250 |
|---|
| Special features | With pivot arm |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size | |
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Similar products
Clamping arm Nr. 570537 For vertical clamp with pivot arm 6958DH, load lever 25 mm, max. clamping force 7,5 kN
Clamping arm Nr. 570538 For vertical clamp with pivot arm 6958DH, load lever 32,5 mm, max. clamping force 5,7 kN
