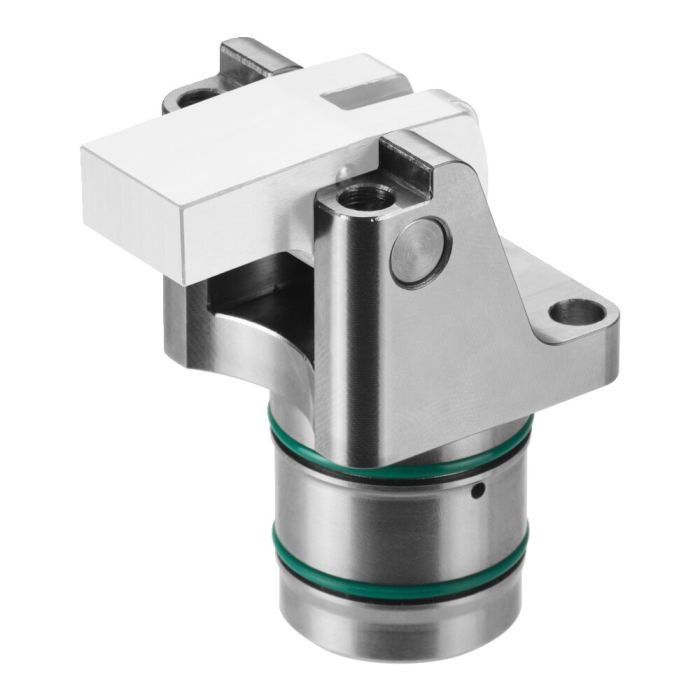

Vertical clamp with pivot arm
Design:
Body from steel. External surface, nickel-plated. Clamp arm not included. Oil supply via oil channel in fixture body. Cylinder screws in accordance with ISO 4762, strength class 12.9, slightly oiled, included in scope of supply.
Application:
Thanks to its compact design, the vertical clamp with pivot arm is particularly suitable for use in clamping fixtures with limited installation space. The large opening angle of the clamping arm makes it easy to load and unload the fixture. The double-acting vertical clamp is highly suited to clamping in clamping pockets. For clearly defined return movements.
Features:
Small dimensions, can be installed closely spaced side-by-side. The horizontal centre axis at the clamping lever and the pressure point on the workpiece lie in one plane. This prevents relative movement on the workpiece. The permissible clamping range is +/- 1,5°.
Sp = Clamp, Lo = Unclamp
| Order no. | 570471 |
|---|---|
| Product type | Vertical clamp |
| Max. operating pressure [bar] | 250 |
| Max. piston force [kN] | 11.3 |
| Type of actuation | Double acting |
| Special features | With pivot arm |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
- Clamping arm Nr. 570536 For vertical clamp with pivot arm 6958DH, load lever 17,5 mm, max. clamping force 11,3 kN
- Clamping arm Nr. 570537 For vertical clamp with pivot arm 6958DH, load lever 25 mm, max. clamping force 7,5 kN
- Clamping arm Nr. 570538 For vertical clamp with pivot arm 6958DH, load lever 32,5 mm, max. clamping force 5,7 kN
- Vertical clamp MINI Nr. 563316 Max. operating pressure 250 bar, max. piston force 13,25 kN, double acting
