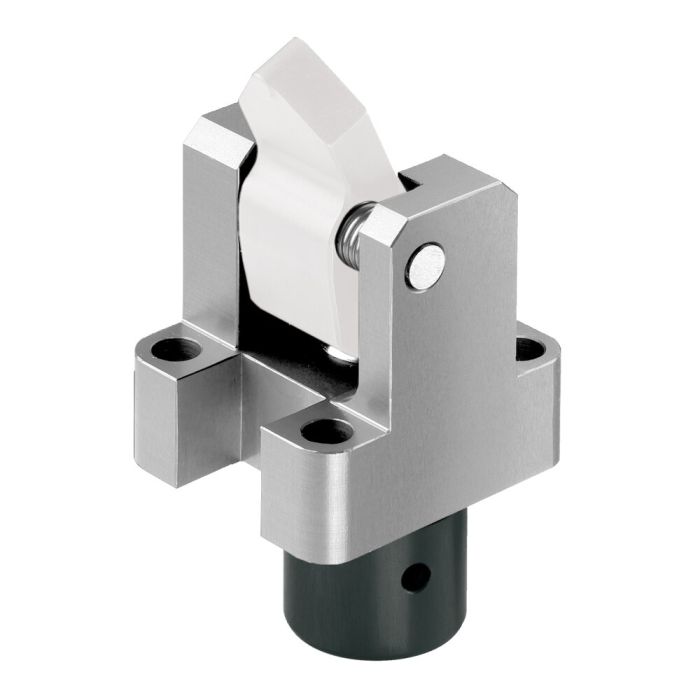

Vertical Clamp
Design:
Cylinder body from steel, chemically nickel-plated. Piston rod nitrided. Wiper at piston rod. Built-in return spring. Supply scope includes clamping lever pin, but not clamping lever. Oil supply via oil channel in fixture body.
Application:
This vertical clamp can be used for clamping in cavities or in very tight spaces.
Features:
Small dimensions, can be installed closely spaced side-by-side. The clamping levers can be exchanged easily in the installed position.
Note:
Screws according to ISO 4762, strength class 12.9, lightly oiled, are not supplied as standard.
During unclamping, the vertical clamp allows a max. dynamic pressure of 3 bar, which must be strictly taken into account when using control valves. Important: Please note the cross-section of the supply line.
| Order no. | 322487 |
|---|---|
| Product type | Vertical clamp |
| Max. operating pressure [bar] | 250 |
| Max. piston force [kN] | 12 |
| Type of actuation | Single acting |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
- Clamping arm out of steel Nr. 322693 For vertical clamp 6958AU and 6958AT, load lever 24 mm, max. clamping force 8,2 kN
- Clamping arm out of steel Nr. 322735 For vertical clamp 6958AU and 6958AT, load lever 40 mm, max. clamping force 4,9 kN
- Clamping arm out of aluminium Nr. 322792 For vertical clamp 6958AU and 6958AT, load lever 24 mm, max. clamping force 2,6 kN, max. operating pressure 100 bar
- Clamping arm blank from aluminium Nr. 322859 For vertical clamp 6958AU and 6958AT, load lever 44 mm, max. operating pressure 100 bar
