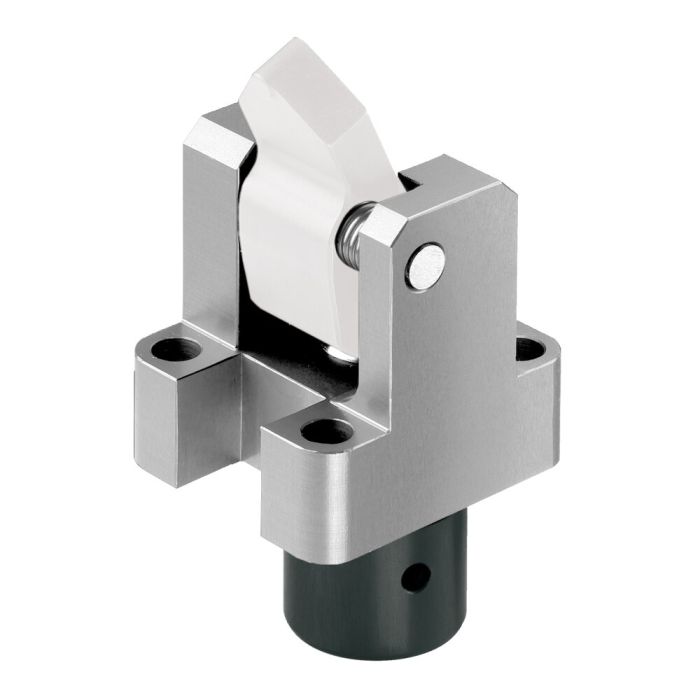

Vertical Clamp
Design:
Cylinder body made of steel, chemically nickel-plated. Piston rod nitrided. Wiper at piston rod. Built-in return spring. Scope of supply includes clamp arm pin, but clamp arm not included.
Application:
This vertical clamp can be used for clamping in cavities or in very tight spaces.
Features:
Small dimensions, can be positioned close to the workpiece. The clamping arms can be exchanged easily in the installed position.
Note:
Screws according to ISO 4762, strength class 12.9, lightly oiled, are not supplied as standard.
During unclamping, the vertical clamp allows a max. dynamic pressure of 3 bar, which must be strictly taken into account when using control valves. Important: Please note the cross-section of the supply line.
| Order no. | 322529 |
|---|---|
| Product type | Vertical clamp |
| Max. operating pressure [bar] | 250 |
| Max. piston force [kN] | 20 |
| Type of actuation | Single acting |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
- Clamping arm out of steel Nr. 322891 For vertical clamp 6958AU and 6958AT, load lever 30 mm, max. clamping force 13,3 kN
- Clamping arm out of steel Nr. 322917 For vertical clamp 6958AU and 6958AT, load lever 40 mm, max. clamping force 10 kN
- Clamping arm out of aluminium Nr. 322990 For vertical clamp 6958AU and 6958AT, load lever 30 mm, max. clamping force 5,3 kN, max. operating pressure 100 bar
- Clamping arm blank from aluminium Nr. 323055 For vertical clamp 6958AU and 6958AT, load lever 54 mm, max. operating pressure 100 bar
