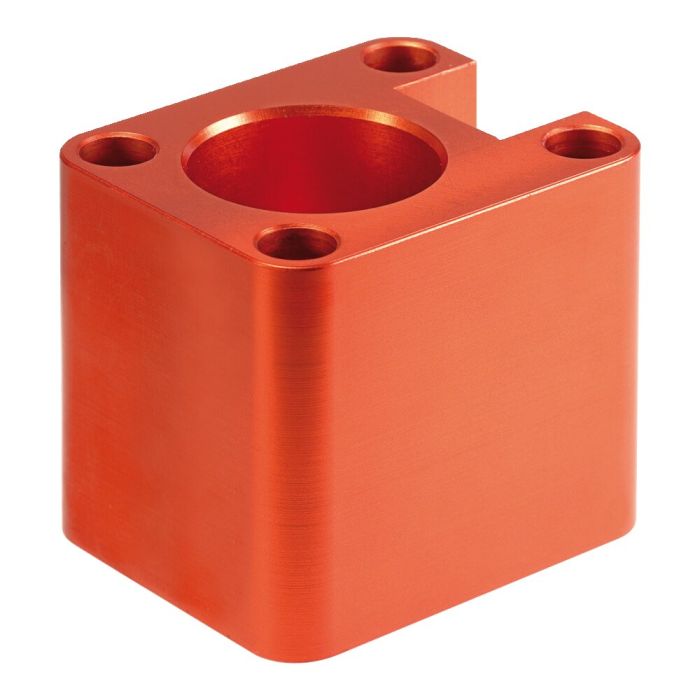

Surface-mounted block
With O-ring connection and threaded connection, height 82 mm
Order no.
322628
Design:
Made of aluminium, red anodised.
Supply scope includes O-ring dia.9x2, threaded plugs and fastening screws.
Application:
The surface-mounted block with O-ring connection from below and threaded connection can be flanged into the fixture as an adapter over the control channel without restriction for the cylindrical part of the vertical clamp or where the control oil supply to the vertical clamp has to be routed via external lines.
Note:
The flange surface on the fixture must be even, and must have a surface finish of Rz 6.3 in the area of the O-ring sealing surface. Other lengths are available on request.
| Order no. | 322628 |
|---|---|
| Product type | Surface-mounted block |
