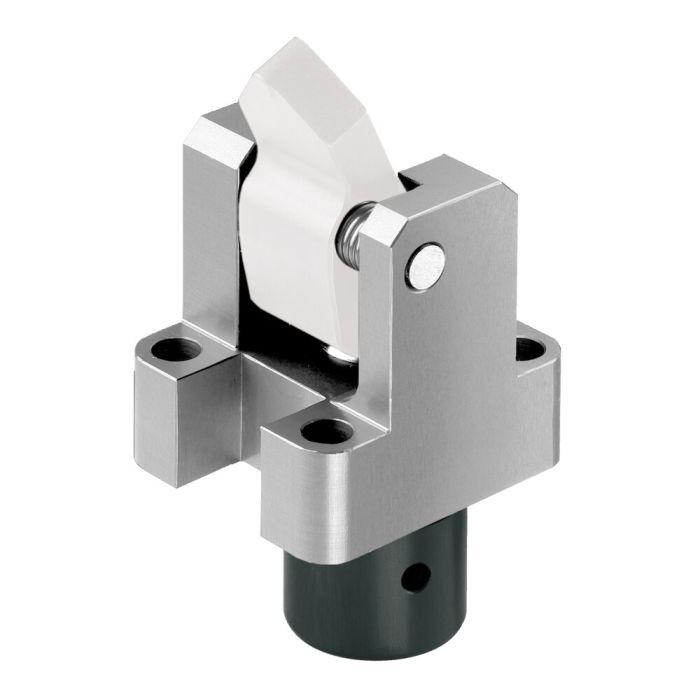

Vertical Clamp
Design:
Cylinder body from steel, chemically nickel-plated. Piston rod nitrided. Wiper at piston rod. Built-in return spring. Supply scope includes clamping lever pin, but not clamping lever. Oil supply via oil channel in fixture body.
Application:
This vertical clamp can be used for clamping in cavities or in very tight spaces.
Features:
Small dimensions, can be installed closely spaced side-by-side. The clamping levers can be exchanged easily in the installed position.
Note:
Screws according to ISO 4762, strength class 12.9, lightly oiled, are not supplied as standard.
During unclamping, the vertical clamp allows a max. dynamic pressure of 3 bar, which must be strictly taken into account when using control valves. Important: Please note the cross-section of the supply line.
| Order no. | 322446 |
|---|---|
| Product type | Vertical clamp |
| Max. operating pressure [bar] | 250 |
| Max. piston force [kN] | 8 |
| Type of actuation | Single acting |
