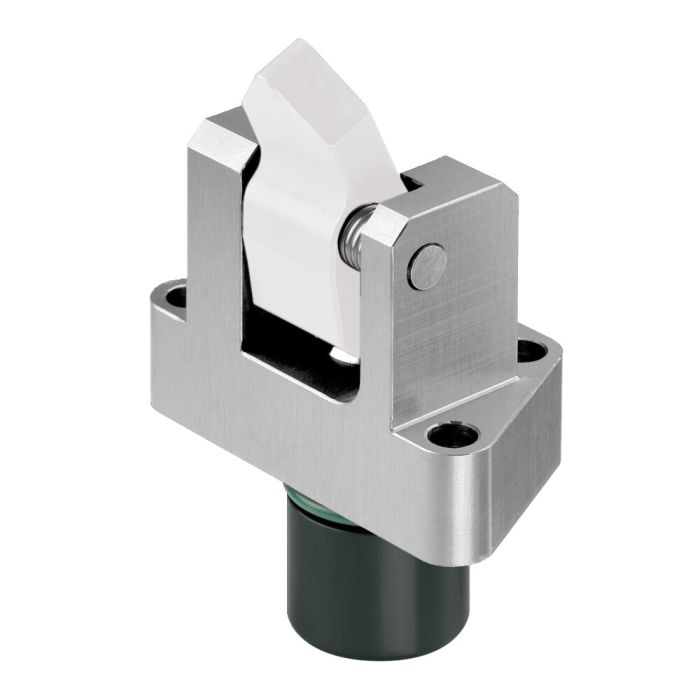

Vertical Clamp
Max. operating pressure 250 bar, max. piston force 8 kN, single acting
Order no.
322461
Design:
Case-hardening steel, case-hardened.
Application:
For vertical clamp 6958AU and 6958AT.
Note:
Clamping pressure, leverage, flow volume and clamp arm weight must always be observed.
* X1 = level length at 90°
| Order no. | 322461 |
|---|---|
| Product type | Vertical clamp |
| Max. operating pressure [bar] | 250 |
| Max. piston force [kN] | 8 |
| Type of actuation | Single acting |
Pimcore content from synoa_downloadsnk_downloads_tab_top
| Area | Language | File name | Type | File size |
|---|
Pimcore content from synoa_downloadsnk_downloads_tab_bottom
Suitable accessories
- Clamping arm out of steel Nr. 322495 For vertical clamp 6958AU and 6958AT, load lever 18 mm, max. clamping force 5,2 kN
- Clamping arm blank from steel Nr. 322552 For vertical clamp 6958AU and 6958AT, load lever 32 mm, Ø 10 mm
- Clamping arm out of steel Nr. 322537 For vertical clamp 6958AU and 6958AT, load lever 30 mm, max. clamping force 3,1 kN
- Clamping arm out of aluminium Nr. 322594 For vertical clamp 6958AU and 6958AT, load lever 18 mm, max. clamping force 2 kN, max. operating pressure 100 bar
- Clamping arm out of aluminium Nr. 322636 For vertical clamp 6958AU and 6958AT, load lever 30 mm, max. clamping force 1,2 kN, max. operating pressure 100 bar
- Clamping arm blank from aluminium Nr. 322651 For vertical clamp 6958AU and 6958AT, load lever 32 mm, Ø 10 mm, max. operating pressure 100 bar
