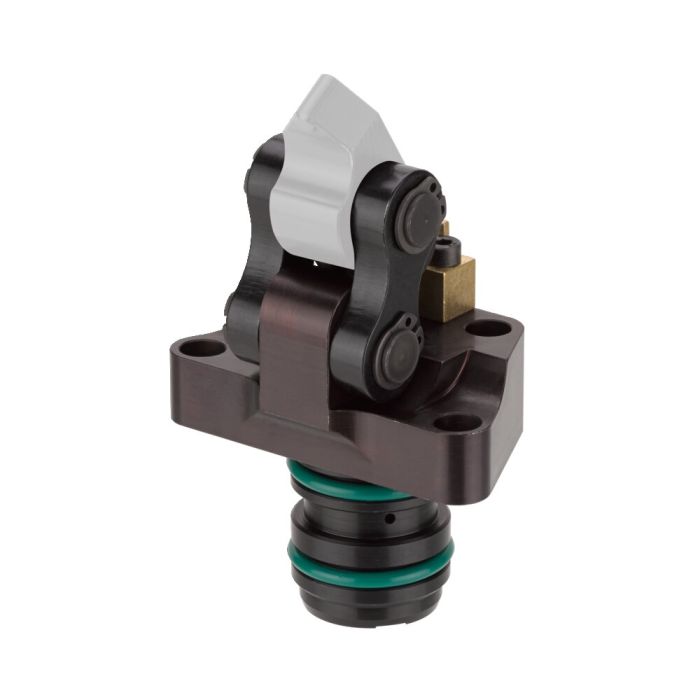

Vertical Clamp
Max. operating pressure 250 bar, max. piston force 12,2 kN, double acting
| Order no. | Article no. | Clamping force F1 at 100 bar
[kN] | Clamping force F1
at 250 bar
[kN] | Piston force F5
at 100 bar
[kN] | Piston force F5 at 250 bar
[kN] | Vol. Sp
[cm³] | Vol. Lo
[cm³] | Eff. piston area Sp
[cm²] | Eff. piston area Lo
[cm²] | Md max.
[Nm] | Q max.
[l/min] | Weight
[g] | Availability | Your Price |
| 326231 | 6958DT-16 | 1,3 | 3,3 | 2,0 | 5,0 | 2,0 | 1,2 | 2,0 | 1,2 | 7,5 | 0,5 | 365 | | |
| 326298 | 6958DT-20 | 2,1 | 5,2 | 3,1 | 7,8 | 3,8 | 2,4 | 3,1 | 2,0 | 15,0 | 0,8 | 386 | | |
| 326397 | 6958DT-25 | 3,2 | 8,2 | 4,9 | 12,2 | 6,9 | 4,1 | 4,9 | 2,9 | 27,0 | 1,2 | 1015 | | |
| 327510 | 6958DT-32 | 5,3 | 13,4 | 8,0 | 20,1 | 13,7 | 8,3 | 8,0 | 4,9 | 47,0 | 2,0 | 1970 | | |
| 553427 | 6958DT-12 | 0,7 | 1,8 | 1,1 | 2,8 | 0,9 | 0,5 | 1,1 | 0,6 | 2,7 | 0,3 | 175 | | |
| | | | | | | | | | | | | | |
| Order no. | A | A1 | b | C | E | dia. D
| H | H1 | H2 | H3 | H4 | H5 | H6 | H7 | k | L | m | N | P | R | S | S1 | V | V1 | V2 | W | ØZ | OR-1
O-ring Order No. | dia. D H7 | dia. F | G x T | H10 | J | dia. X
| X1 | dia. Y | Y1 |
| 326231 | 51,9 | 0,40 | 12 | 18,0 | 19,0 | 24 | 16,5 | 58,4 | 38,3 | 46,3 | 27,0 | 11 | 19,3 | 11 | 26 | 33 | 10,5 | 5,5 | 12 | 11,5 | 68,3 | 37,49 | 29 | 15 | 13,7 | 51 | 6,5 | 497461 | 24 | 25,4 | M6x15 | 27,0 | 2,0 | 5 | 11 | 5 | 24,5 |
| 326298 | 54,0 | 1,25 | 14 | 21,0 | 23,0 | 30 | 20,3 | 73,2 | 49,0 | 59,0 | 34,0 | 14 | 25,0 | 16 | 32 | 40 | 13,0 | 6,0 | 16 | 14,0 | 78,9 | 41,60 | 33 | 15 | 17,5 | 59 | 8,5 | 490342 | 30 | 31,4 | M8x16 | 34,0 | 2,0 | 5 | 13 | 5 | 31,5 |
| 326397 | 51,2 | 0,70 | 17 | 25,5 | 27,5 | 35 | 21,0 | 79,4 | 51,0 | 62,0 | 37,0 | 12 | 27,0 | 16 | 39 | 51 | 16,0 | 8,0 | 20 | 19,0 | 96,1 | 48,55 | 39 | 15 | 21,0 | 71 | 10,5 | 321018 | 35 | 36,4 | M10x20 | 37,0 | 2,0 | 5 | 14 | 5 | 34,5 |
| 327510 | 53,4 | -1,0 | 20 | 30,0 | 33,0 | 42 | 24,0 | 97,1 | 63,0 | 76,0 | 59,5 | 13 | 35,0 | 18 | 50 | 58 | 18,0 | 9,0 | 26 | 22,0 | 112,25 | 58,16 | 48 | 15 | 24,0 | 84 | 12,5 | 409748 | 42 | 43,4 | M12x20 | 59,5 | 2,5 | 6 | 18 | 6 | 56,5 |
| 553427 | 49,5 | 0,13 | 10 | 15,0 | 17,0 | 18 | 13,5 | 47,7 | 31,0 | 38,0 | 22,0 | 7 | 16,0 | 12,2 | 20 | 28,5 | 10,0 | 4,5 | 10 | 8,5 | 50,1 | 23,55 | 20 | 7 | 11,4 | 36 | 4,5 | 409953 | 18 | 19,4 | M4x8 | 22,0 | 0,5 | 4 | 8 | 4 | 20,0 |
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
Design:
Hardened, tempered and burnished steel.
Application:
For vertical clamp 6958DU and 6958DT.
Note:
Clamping pressure, leverage, flow volume and clamp arm weight must always be observed.
More Information | Order no. | 326397 |
|---|
| Product type | Vertical clamp |
|---|
| Max. clamping force [kN] | 8.2 |
|---|
| Max. operating pressure [bar] | 250 |
|---|
| Max. piston force [kN] | 12.2 |
|---|
| Type of actuation | Double acting |
|---|
