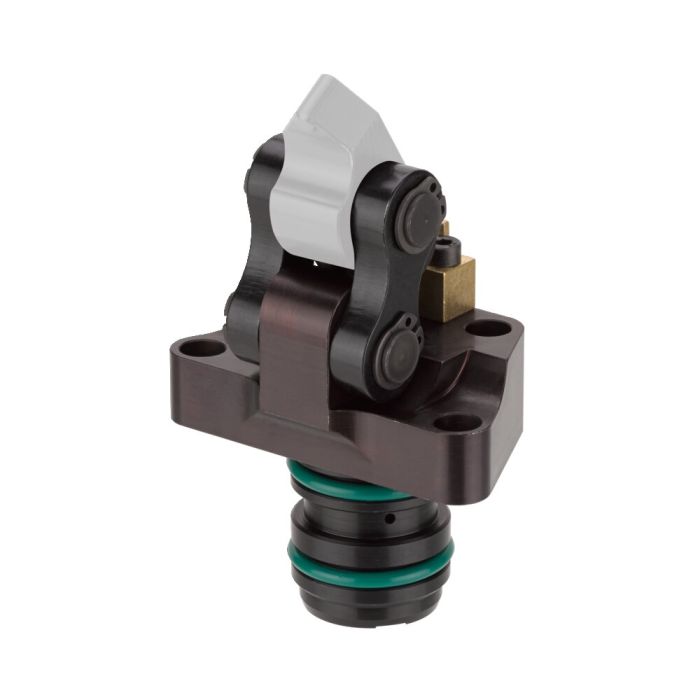

Vertical Clamp

Max. operating pressure 250 bar, max. piston force 2,8 kN, double acting

Order no.

553427

Order no.	Article no.	Clamping force F1 at 100 bar [kN]	Clamping force F1 at 250 bar [kN]	Piston force F5 at 100 bar [kN]	Piston force F5 at 250 bar [kN]	Vol. Sp [cm³]	Vol. Lo [cm³]	Eff. piston area Sp [cm²]	Eff. piston area Lo [cm²]	Md max. [Nm]	Q max. [l/min]	Weight [g]
326231	6958DT-16	1,3	3,3	2,0	5,0	2,0	1,2	2,0	1,2	7,5	0,5	365
326298	6958DT-20	2,1	5,2	3,1	7,8	3,8	2,4	3,1	2,0	15,0	0,8	386
326397	6958DT-25	3,2	8,2	4,9	12,2	6,9	4,1	4,9	2,9	27,0	1,2	1015
327510	6958DT-32	5,3	13,4	8,0	20,1	13,7	8,3	8,0	4,9	47,0	2,0	1970
553427	6958DT-12	0,7	1,8	1,1	2,8	0,9	0,5	1,1	0,6	2,7	0,3	175

Order no.	A	A1	b	C	E	dia. D	H	H1	H2	H3	H4	H5	H6	H7	k	L	m	N	P	R	S	S1	V	V1	V2	W	ØZ	OR-1 O-ring Order No.	dia. D H7	dia. F	G x T	H10	J	dia. X	X1	dia. Y	Y1
326231	51,9	0,40	12	18,0	19,0	24	16,5	58,4	38,3	46,3	27,0	11	19,3	11	26	33	10,5	5,5	12	11,5	68,3	37,49	29	15	13,7	51	6,5	497461	24	25,4	M6x15	27,0	2,0	5	11	5	24,5
326298	54,0	1,25	14	21,0	23,0	30	20,3	73,2	49,0	59,0	34,0	14	25,0	16	32	40	13,0	6,0	16	14,0	78,9	41,60	33	15	17,5	59	8,5	490342	30	31,4	M8x16	34,0	2,0	5	13	5	31,5
326397	51,2	0,70	17	25,5	27,5	35	21,0	79,4	51,0	62,0	37,0	12	27,0	16	39	51	16,0	8,0	20	19,0	96,1	48,55	39	15	21,0	71	10,5	321018	35	36,4	M10x20	37,0	2,0	5	14	5	34,5
327510	53,4	-1,0	20	30,0	33,0	42	24,0	97,1	63,0	76,0	59,5	13	35,0	18	50	58	18,0	9,0	26	22,0	112,25	58,16	48	15	24,0	84	12,5	409748	42	43,4	M12x20	59,5	2,5	6	18	6	56,5
553427	49,5	0,13	10	15,0	17,0	18	13,5	47,7	31,0	38,0	22,0	7	16,0	12,2	20	28,5	10,0	4,5	10	8,5	50,1	23,55	20	7	11,4	36	4,5	409953	18	19,4	M4x8	22,0	0,5	4	8	4	20,0

Design:
Hardened, tempered and burnished steel.

Application:
For vertical clamp 6958DU and 6958DT.

Note:
Clamping pressure, leverage, flow volume and clamp arm weight must always be observed.
