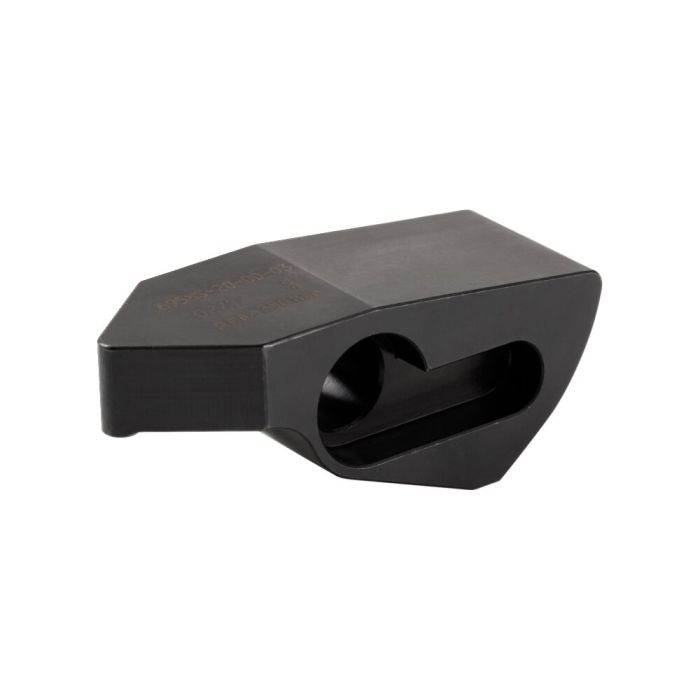

Clamping arm out of steel

For vertical clamp 6958AU and 6958AT, load lever 24 mm, max. clamping force 8,2 kN

Order no.

322693

Order no.	Article no.	dia. E	R	k	P	X	X1*	Clamping force at 100 bar [kN]	Clamping force at 250 bar [kN]	Weight [g]
322495	6958S-20-00-02	10	2	10	22	18	12	2,0	5,2	114
322511	6958S-20-00-03	10	2	10	22	24	12	1,5	3,9	125
322537	6958S-20-00-04	10	2	10	22	30	12	1,2	3,1	135
322693	6958S-25-00-02	12	4	11	27	24	16	2,6	8,2	171
322719	6958S-25-00-03	12	4	11	27	32	16	2,0	6,1	191
322735	6958S-25-00-04	12	4	11	27	40	16	1,6	4,9	211
322891	6958S-32-00-02	15	4	16	34	30	20	5,3	13,3	375
322917	6958S-32-00-03	15	4	16	34	40	20	4,0	10,0	417
322933	6958S-32-00-04	15	4	16	34	50	20	3,2	8,0	457
324178	6958S-16-01-03	8	2	8	18	24	12	1,0	2,5	66
324186	6958S-16-01-02	8	2	8	18	18	12	1,3	3,3	60
324194	6958S-16-01-04	8	2	8	18	30	12	0,8	2,0	72

Design:
Aluminium.

Application:
For vertical clamp 6958AU and 6958AT.

Note:
Clamping pressure, leverage, flow volume and clamp arm weight must always be observed. Max. operating pressure 100 bar.

* X1 = level length at 90°
