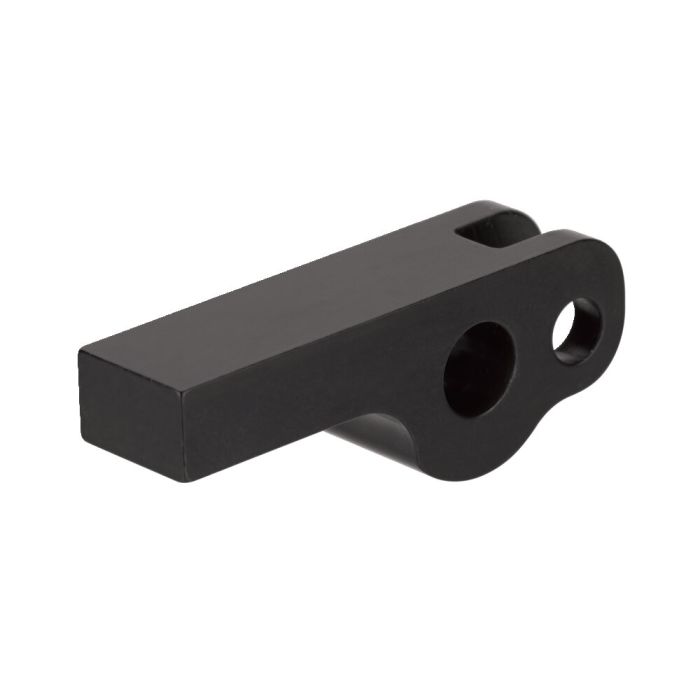

Clamping arm, blank
For vertical clamp 6958DU and 6958DT, load lever 40 mm
Order no.
326348
Design:
Hardened, tempered and burnished steel.
Application:
For vertical clamp 6958DU and 6958DT.
Note:
Clamping pressure, leverage, flow volume and clamp arm weight must always be observed.
Formula to determine the clamping force F1:
Clamping force = F1 [kN], piston force = F5 [kN], operating lever = B [mm], load lever = C [mm]
F1 = F5 x B / C
| Order no. | 326348 |
|---|---|
| Product type | Clamping arm |
| Max. operating pressure [bar] | 250 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
Similar products
- Clamping arm Nr. 326322 For vertical clamp 6958DU and 6958DT, load lever 21 mm, max. clamping force 5,2 kN
