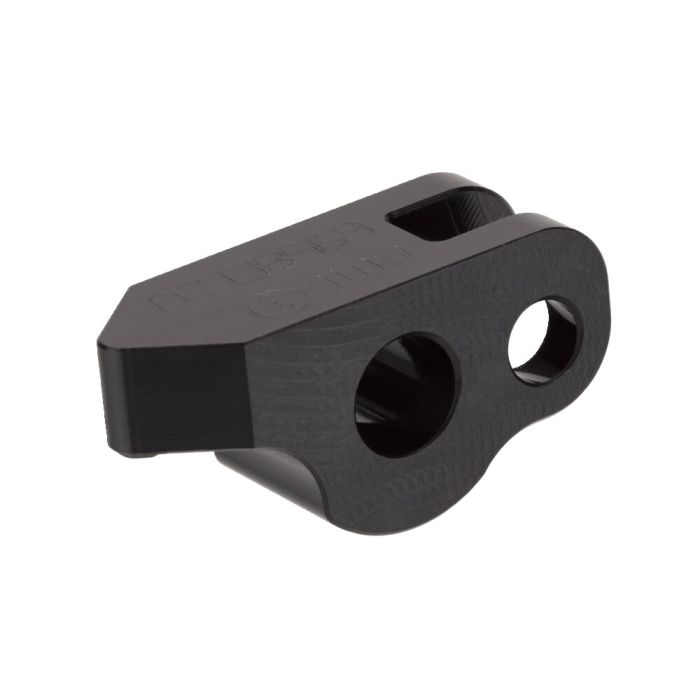

Clamping arm

For vertical clamp 6958DU and 6958DT, load lever 21 mm, max. clamping force 5,2 kN

Order no.

326322

Order no.	Article no.	Clamping force F1 at 100 bar [kN]	Clamping force F1 at 250 bar [kN]	b	C	dia. D	dia. E	G	k	L	N	N1	P	R	R1	Weight [g]
326215	6958D-16-04	1,3	3,3	12	18,0	8	6	90	8	38,0	5,0	4,5	12	2,0	5,0	31
326322	6958D-20-04	2,1	5,2	14	21,0	10	7	80	10	44,5	4,5	7,0	16	2,5	7,5	60
326413	6958D-25-04	2,6	8,2	17	25,5	12	9	80	11	53,5	7,0	7,0	20	3,0	7,5	94
327551	6958D-32-04	5,3	13,4	20	30,0	15	11	80	13	64,0	8,0	7,5	26	4,0	8,0	178
553428	6958D-12-04	0,7	1,8	10	15,0	6	4	90	7	30,5	5,0	3,4	10	1,5	4,0	19

Design:
Hardened, tempered and burnished steel.

Application:
For vertical clamp 6958DU and 6958DT.

Note:
Clamping pressure, leverage, flow volume and clamp arm weight must always be observed.

CAD

If you are missing a download, please write to us using our contact form.

Area	Language	File name	Type	File size

For general downloads, such as catalogs and brochures, please click here.

Similar products

Clamping arm, blank Nr. 326348 For vertical clamp 6958DU and 6958DT, load lever 40 mm
