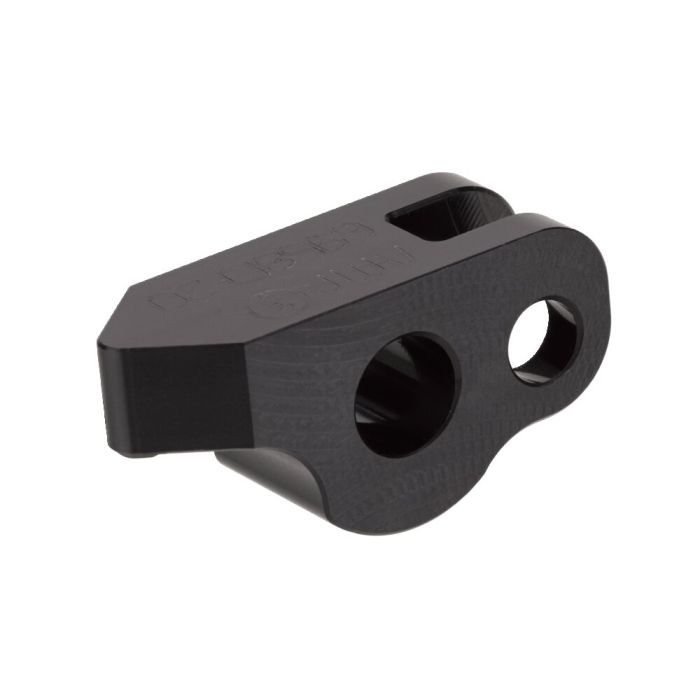

Clamping arm

For vertical clamp 6958DU and 6958DT, load lever 30 mm, max. clamping force 13,4 kN

Order no.

327551

Order no.	Article no.	Clamping force F1 at 100 bar [kN]	Clamping force F1 at 250 bar [kN]	b	C	dia. D	dia. E	G	k	L	N	N1	P	R	R1	Weight [g]
326215	6958D-16-04	1,3	3,3	12	18,0	8	6	90	8	38,0	5,0	4,5	12	2,0	5,0	31
326322	6958D-20-04	2,1	5,2	14	21,0	10	7	80	10	44,5	4,5	7,0	16	2,5	7,5	60
326413	6958D-25-04	2,6	8,2	17	25,5	12	9	80	11	53,5	7,0	7,0	20	3,0	7,5	94
327551	6958D-32-04	5,3	13,4	20	30,0	15	11	80	13	64,0	8,0	7,5	26	4,0	8,0	178
553428	6958D-12-04	0,7	1,8	10	15,0	6	4	90	7	30,5	5,0	3,4	10	1,5	4,0	19

Design:
Hardened, tempered and burnished steel.

Application:
For vertical clamp 6958DU and 6958DT.

Note:
Clamping pressure, leverage, flow volume and clamp arm weight must always be observed.

CAD

If you are missing a download, please write to us using our contact form.
