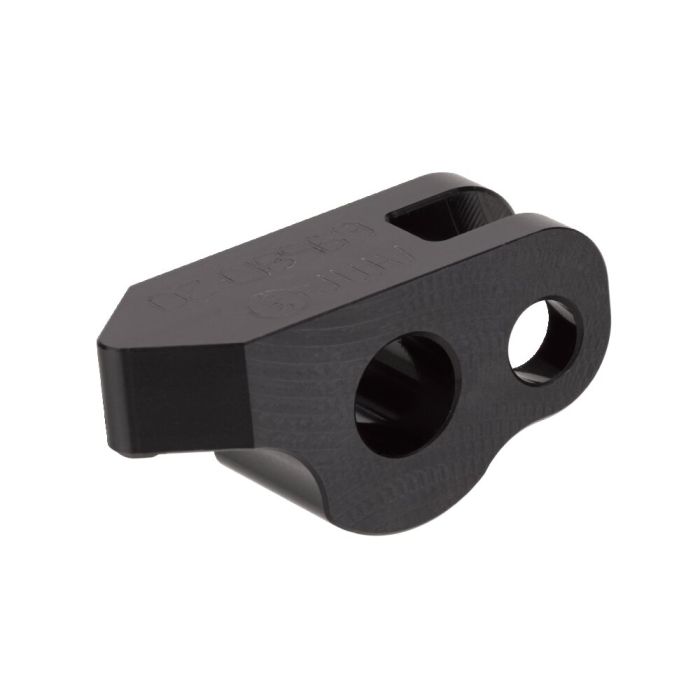

Clamping arm
For vertical clamp 6958DU and 6958DT, load lever 18 mm, max. clamping force 3,3 kN
Order no.
326215
Design:
Hardened, tempered and burnished steel.
Application:
For vertical clamp 6958DU and 6958DT.
Note:
Clamping pressure, leverage, flow volume and clamp arm weight must always be observed.
Formula to determine the clamping force F1:
Clamping force = F1 [kN], piston force = F5 [kN], operating lever = B [mm], load lever = C [mm]
F1 = F5 x B / C
| Order no. | 326215 |
|---|---|
| Product type | Clamping arm |
| Max. clamping force [kN] | 3.3 |
| Max. operating pressure [bar] | 250 |
