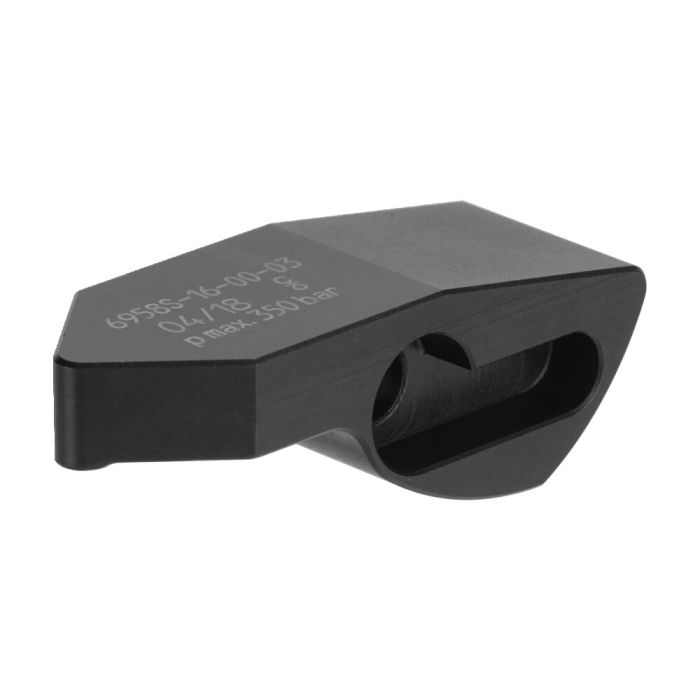

Clamping arm out of steel
For vertical clamp 6958SU-16 and 6958ST-16, load lever 24 mm, max. clamping force 3,5 kN
Order no.
320259
Design:
Case-hardening steel, case-hardened.
Application:
For vertical clamp 6958SU-16 and 6958ST-16.
Note:
Clamping pressure, leverage, flow volume and clamp arm weight must always be observed.
* X1 = level length at 90°
**Clamp arm blank, unhardened
| Order no. | 320259 |
|---|---|
| Product type | Clamping arm |
| Max. clamping force [kN] | 3.5 |
| Max. operating pressure [bar] | 350 |
