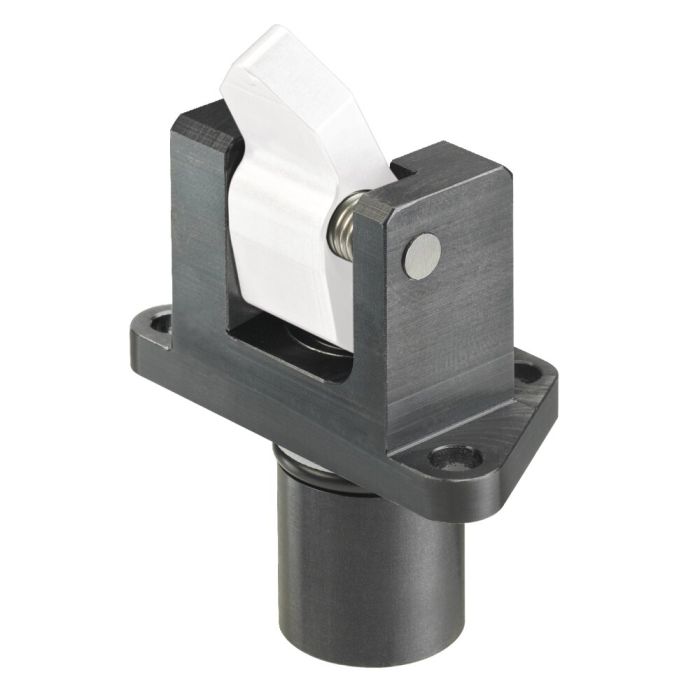

Vertical Clamp
Design:
Cylinder body from steel, burnished. Piston rod nitrided. Wiper at piston rod. Built-in return spring. Supply scope includes clamping lever pin, but not clamping lever. Oil supply via oil channel in fixture body.
Application:
This vertical clamp can be used for clamping in cavities or in very tight spaces.
Features:
Small dimensions, can be installed closely spaced side-by-side. The clamping levers can be exchanged easily in the installed position.
Note:
Screws according to ISO4762 M6, strength class 12.9, lightly oiled, tightening torque Md = 18 Nm not supplied as standard.
During unclamping, the vertical clamp allows a max. dynamic pressure of 3 bar, which must be strictly taken into account when using control valves.
| Order no. | 322255 |
|---|---|
| Product type | Vertical clamp |
| Max. operating pressure [bar] | 350 |
| Max. piston force [kN] | 7 |
| Type of actuation | Single acting |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
- Clamping arm out of steel Nr. 320218 For vertical clamp 6958SU-16 and 6958ST-16, load lever 12 mm, max. clamping force 7 kN
- Clamping arm out of steel Nr. 320259 For vertical clamp 6958SU-16 and 6958ST-16, load lever 24 mm, max. clamping force 3,5 kN
- Clamping arm out of steel Nr. 322438 For vertical clamp 6958SU-16 and 6958ST-16, clamp arm blank, unhardened
- Clamping arm out of aluminium Nr. 320242 For vertical clamp 6958SU-16 and 6958ST-16, load lever 18 mm, max. clamping force 1,3 kN, max. operating pressure 100 bar
- Clamping arm out of aluminium Nr. 320283 For vertical clamp 6958SU-16 and 6958ST-16, load lever 30 mm, max. clamping force 0,8 kN, max. operating pressure 100 bar
- Clamping arm out of aluminium Nr. 322453 For vertical clamp 6958SU-16 and 6958ST-16, clamp arm blank, max. operating pressure 100 bar
