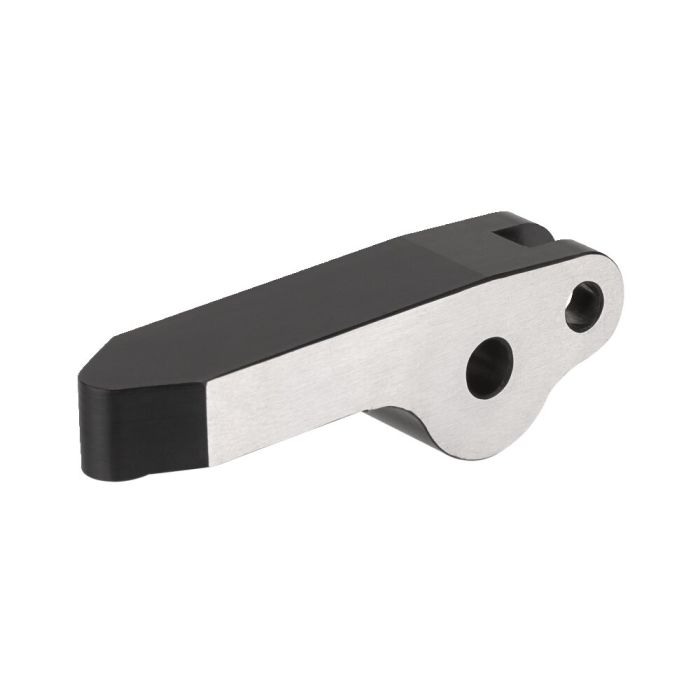

Clamping arm out of steel
For vertical clamp 6958E and 6958EFT, load lever 42 mm, max. clamping force 2,3 kN
Order no.
328096
Design:
Case-hardening steel, case-hardened.
Application:
For vertical clamps 6958E and 6958EFT.
Note:
Clamping pressure, leverage, flow volume and clamp arm weight must always be observed.
*X1 = Lever length at 90°
| Order no. | 328096 |
|---|---|
| Product type | Clamping arm |
| Max. clamping force [kN] | 2.3 |
| Max. operating pressure [bar] | 250 |
If you are missing a download, please write to us using our contact form.
| Area | Language | File name | Type | File size |
|---|
For general downloads, such as catalogs and brochures, please click here.
Suitable accessories
- Vertical clamp, cartridge flange Nr. 328013 Max. operating pressure 250 bar, max. piston force 7,8 kN, double acting
- Vertical clamp, flange design Nr. 570465 Max. operating pressure 250 bar, max. piston force 7,8 kN, double acting
Similar products
- Clamping arm out of steel Nr. 328054 For vertical clamp 6958E and 6958EFT, load lever 28 mm, max. clamping force 3,46 kN
- Clamping arm out of steel Nr. 328070 For vertical clamp 6958E and 6958EFT, load lever 35 mm, max. clamping force 2,72 kN
