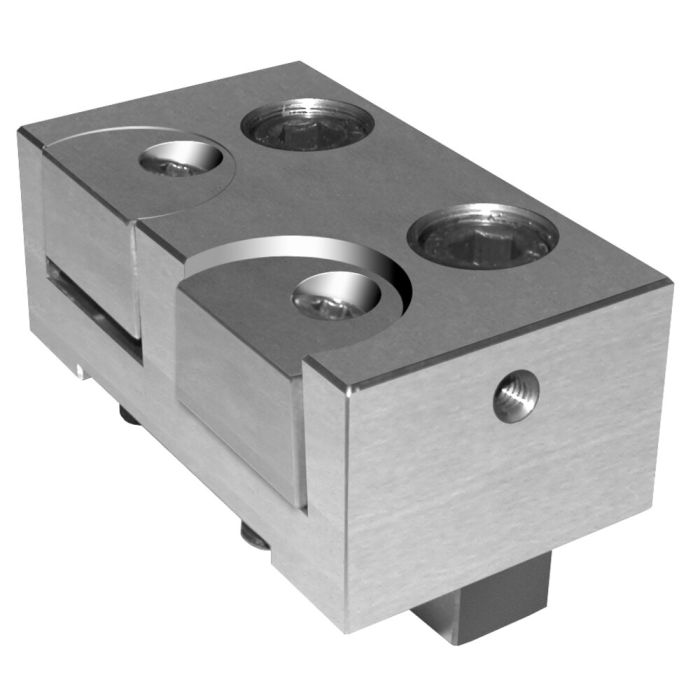

Clamping jaw, with crescent
| Order no. | Size | for jaw
width
| Clamping force
[kN] | Clamping stroke
[mm] | Weight
[g] | Availability | Your Price |
| 305011 | 50110-50 | 50 | 12 | 1,4 | 280 | | |
| 305037 | 80110-80 | 80 | 15 | 1,4 | 1000 | | |
| | | | | | | |
| Order no. | A | b | C | D | G | H | J | L | m | N | T |
| 305011 | 49 | 23 | 28 | 30,5 | 15,3 | 8 | - | - | - | 2xM6 | 12 |
| 305037 | 82 | 32,2 | 2x28 | 46 | 23 | 8 | 16 | 25 | 4xM6 | 2xM6 | 16 |
| | | | | | | | | | | |
More Information | Order no. | 305037 |
|---|
| Operating mode | Mechanical |
|---|
| Backenbreite | 80 |
|---|
